Embedded System
// Embedded System
// Intel N100
// Passive cooled
// 1 x Display
// 1 x Serial

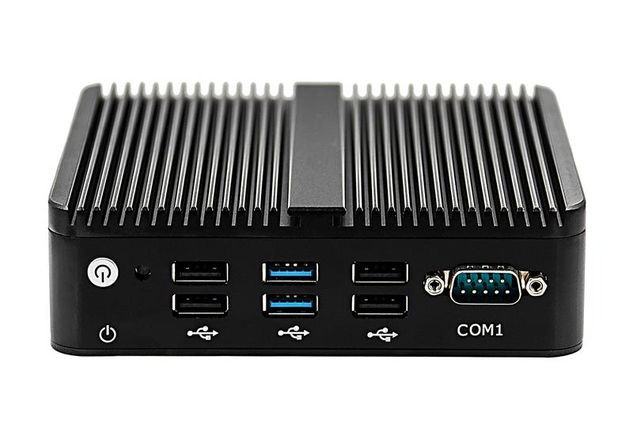

// 6 x USB (Front page)

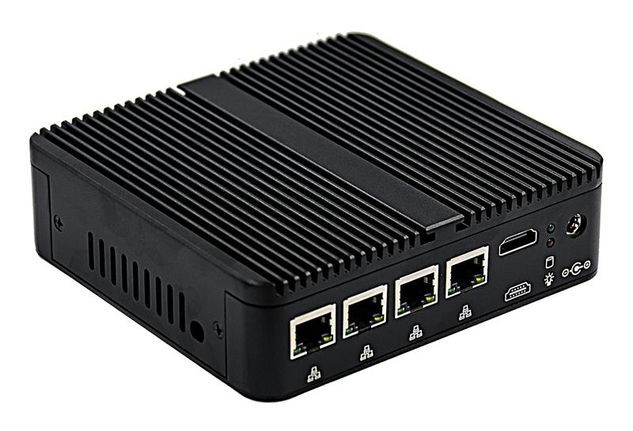

// 4 x G-LAN (Back side)
// 1 x Mini-PCIe
// 12V
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Artessa IT AIT-B05
| General information | ||||
| SKU / Item Number | AIT-B05 | |||
| Product Basic Data | ||||
| Manufacturer | Artessa IT | |||
| System | ||||
| Processor | Series | Intel Alder Lake | ||
| Number | Intel N100 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Max Turbo Frequency | 3,4 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| BIOS | AMI UEFI BIOS | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| HDMI | Version | 1.4 | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | mSATA | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 4 Pce | |||
| Network | 4x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Externe I/O (Front Panel) | ||||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 4 Pce | ||
| USB 3.0 | 2 Pce | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 4 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 135 mm | |||
| Deep | 127 mm | |||
| Height | 38,7 mm | |||
| Weight | 1000 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Black | |||
| Material | Aluminum | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
