Embedded System
// Embedded System
// [Intel Core i5-1235U | Intel Core i7-1255U | Intel Core i7-1365U]
// Passive cooled
// 2 x Display
// 2 x Serial
// 8 x USB (Front page)
// 2 x G-LAN (Back side)
// 1 x Mini-PCIe
// 1 x M.2 Slot
// 12 to 19 V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Artessa IT AIT-B10
| General information | ||||
| SKU / Item Number | AIT-B10 | |||
| Product Basic Data | ||||
| Manufacturer | Artessa IT | |||
| System | ||||
| Processor | Series | Intel Alder Lake, Intel Raptor Lake | ||
| Number | Intel Core i5-1235U, Intel Core i7-1255U, Intel Core i7-1365U | |||
| CPU cores | 10 Pce | |||
| Threads | 12 Pce | |||
| Socket | BGA 1744 | |||
| Performance Core Max Turbo Frequency | 4,4 GHz, 4,7 GHz, 5,2 GHz | |||
| Efficient-core Max Turbo Frequency | 3,3 GHz, 3,5 GHz, 3,9 GHz | |||
| Cache | 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| BIOS | AMI UEFI BIOS | |||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111H (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||

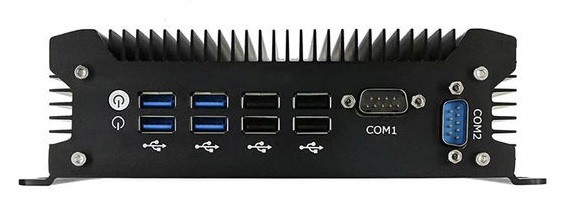

| Externe I/O (Front Panel) | ||||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 4 Pce | ||
| USB 3.2 (Gen 1) | 4 Pce | |||

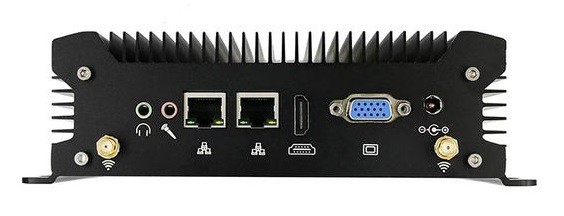

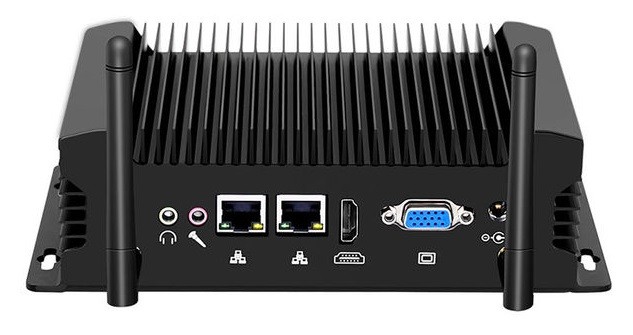

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 19 V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12 to 19V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 193,9 mm | |||
| Deep | 127 mm | |||
| Height | 57,2 mm | |||
| Weight | 1000 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| SMA connector | 2 Pce | |||
| Color | Black | |||
| Material | Aluminum | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
