Embedded System
// Embedded System
// [Intel Core i5-1030NG7 | Intel Core i7-1060NG7]
// [1,1 | 1,2] GHz
// Passive cooled
// 16 GB RAM
// 2 x Display
// 3 x USB (Front page)
// 1 x USB (Back side)
// 2 x M.2 Slot
// 12~20V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Artessa IT AIT-B11
| General information | ||||
| SKU / Item Number | AIT-B11 | |||
| Product Basic Data | ||||
| Manufacturer | Artessa IT | |||
| System | ||||
| Processor | Series | Intel Comet Lake | ||
| Number | Intel Core i5-1030NG7, Intel Core i7-1060NG7 | |||
| CPU cores | 4 Pce | |||
| Threads | 8 Pce | |||
| Base frequency | 1,1 GHz, 1,2 GHz | |||
| Max Turbo Frequency | 3,5 GHz, 3,8 GHz | |||
| Cache | 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 16 GB | |||
| BIOS | AMI UEFI BIOS | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||

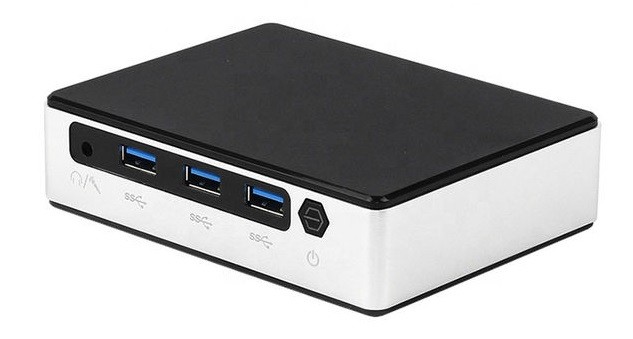

| Externe I/O (Front Panel) | ||||
| Audio | Combo Jack | 1 Pce | ||
| USB | USB 3.0 | 3 Pce | ||

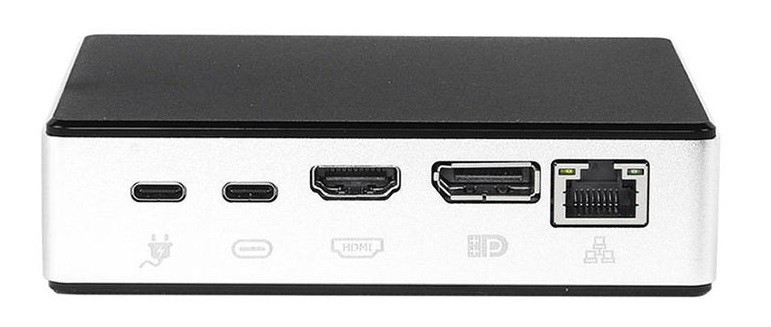

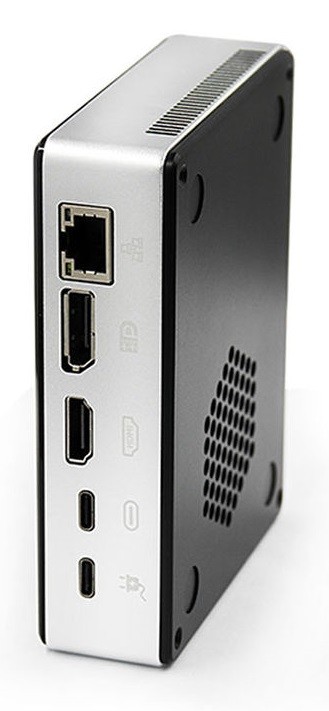

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP++ | 1 Pce | |||
| DP USB-C | 1 Pce | |||
| USB | USB 3.1 (Gen 2, Type-C) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12~20V | |||
| Connector | USB Type-C | |||
| Power supply - Input | DC: 12~20V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Dimensions | Form factor | Embedded System | ||
| Width | 117 mm | |||
| Deep | 90 mm | |||
| Height | 30 mm | |||
| Weight | 300 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Color | Black / silver | |||
| Material | Aluminum, plastic | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
