Embedded System
// Embedded System
// Intel Core i5-12500TE
// Passive cooled
// 1 x Display
// 6 x Serial
// 2 x USB (Front page)
// 4 x USB (Back side)
// 2 x G-LAN (Back side)
// 3 x M.2 Slot
// 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

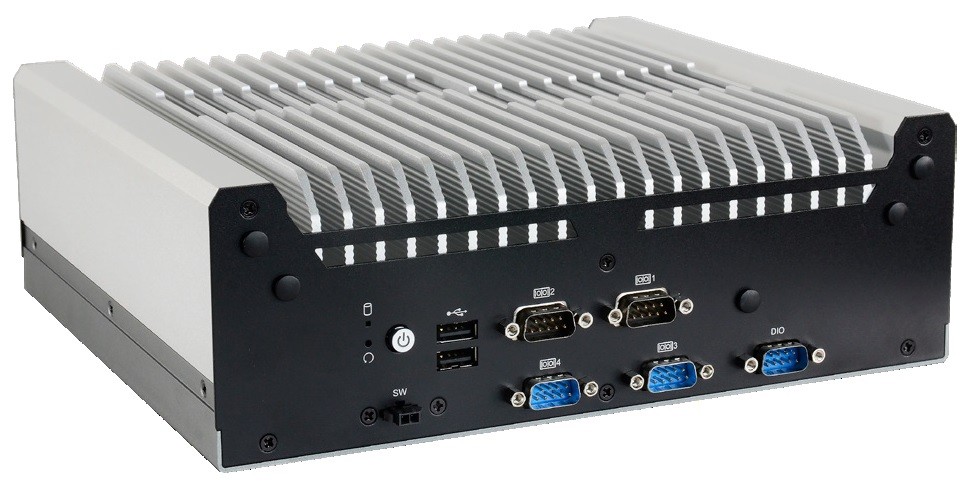

Basic Module: DFI EC500-ADS
| General information | ||||
| SKU / Item Number | EC500-ADS | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 750-EC5005-000G, 750-EC5005-100G, 750-EC5005-200G | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel Core i5-12500TE | |||
| CPU cores | 6 Pce | |||
| Threads | 12 Pce | |||
| Socket | LGA 1700 (H6) | |||
| Max Turbo Frequency | 4,3 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz | |||
| Efficient-core Max Turbo Frequency | 1,9 GHz | |||
| Cache | 18 MB | |||
| Thermal Design Power (TDP) | 35 W | |||
| Chipset | Intel H610E, Intel Q670E, Intel R680E | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| Frequency | 3200 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| BIOS | AMI SPI 128 Mbit | |||
| Graphics | ||||
| Processor | Intel UHD Graphics 770 | |||
| Performance feature | Support | DirectX 12, OpenCL 2.1, OpenGL 4.5 | ||
| Hardware decoding | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VP 8, VP 9 | |||
| HW encoding | HEVC / H.265, JPEG/MJPEG, MPEG2, VP 8 | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×1 (Gen 3), USB 3.0 | |||
| Supported dimensions | 3042, 3052 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4, SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E | |||
| Audio | ||||
| Chipset | Realtek ALC888 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I225IT PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| RAID support | RAID 0/1 | -, is supported | ||
| Externe I/O (Front Panel) | ||||
| Serial | RS-232 / 422 / 485 | DB-9 | 4 Pce | |
| Digital I/O | Bits | 8-bit | ||
| Connector | DB-9 | |||
| USB | USB 2.0 | 2 Pce | ||
| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| DP++ / HDMI Dual Connector | 2 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 3.1 Gen 1 | 4 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 9~36V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Heat Spreader | ||
| Inserts | ||||
| Internal | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation (SSD) | -20° down to 70°C | ||
| Storage | -20° to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | Embedded System | ||
| Width | 255,3 mm | |||
| Deep | 85 mm | |||
| Height | 224 mm | |||
| Vibration | Reference Standard | IEC 68-2-64 | ||
| Shock | Measurement Data | 3G, half sine wave, 11 ms duration | ||
| Weight | 4150 g | |||
| Controls | Power | 1 Pce | ||
| Power (terminal connection) | 1 Pce | |||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 4 Pce | |||
| Color | Black / silver | |||
| Material | Aluminum, Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Supported OS | Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | BSI, UKCA | |||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Expected until | Q4/2036 | |||
