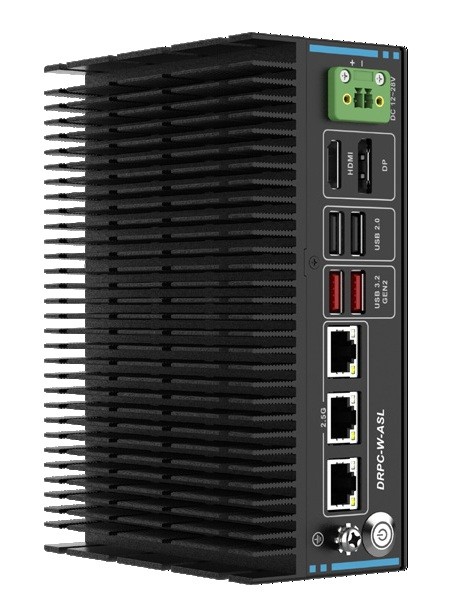

Embedded System
// Embedded System
// [Intel Atom X7433RE | Intel Atom x7835RE | Intel N150]
// Passive cooled
// 8 GB RAM
// 2 x Display
// 4 x USB (Front page)
// 3 x G-LAN (Front page)
// 2 x M.2 Slot
// 12 to 28V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: IEI DRPC-W-ASL
| General information | ||||
| SKU / Item Number | DRPC-W-ASL | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | Intel Amston Lake, Intel Twin Lake | ||
| Number | Intel Atom X7433RE, Intel Atom x7835RE, Intel N150 | |||
| CPU cores | 4 Pce, 8 Pce | |||
| Threads | 4 Pce, - | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,4 GHz, 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 9 W, 12 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB | |||
| Graphics | ||||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Version | 1.4 | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×2 (Gen 3) | |||
| Supported dimensions | 2242, 2280 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 3 Pce | |||
| Network | 3x G-LAN | |||
| Internal I/O | ||||
| Serial | RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | |
| Digital I/O | Bits | 12-bit | 1 Pce | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||

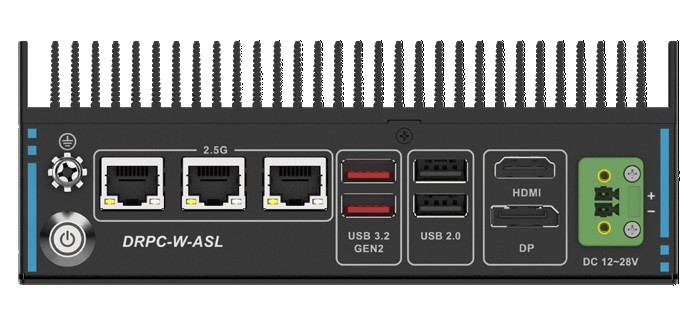

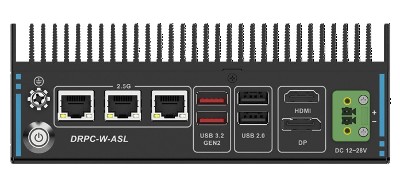

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Ethernet | RJ-45 | 3 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 28V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12–28V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C, -40°C to 70°C | ||
| Storage | -20° down to 70°C, -40°C to 85°C | |||
| Dimensions | Form factor | Embedded System | ||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Shock | Measurement Data | 5G, half sine wave, 11 ms duration | ||
| Weight | 1130 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||

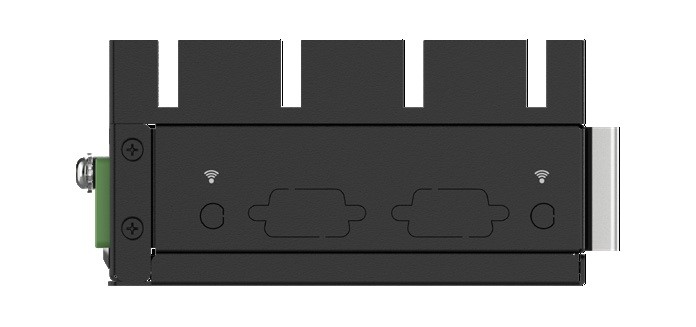

| Antenna holes | 2 Pce | |||
| Color | Black | |||
| Mounting option | DIN Rail, Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
