Embedded System
// Embedded System
// Intel Celeron J6412
// 2 GHz
// Passive cooled
// 8 GB RAM
// 1 x Display
// 4 x USB (Back side)
// 2 x G-LAN (Back side)
// 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: IEI IRM-TS410E
| General information | ||||
| SKU / Item Number | IRM-TS410E | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| Product ID | IRM-TS410E-8G2H-R10 | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Elkhart Lake | |||
| Number | Intel Celeron J6412 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1493 | |||
| Base frequency | 2 GHz | |||
| Max Turbo Frequency | 2,6 GHz | |||
| Cache | 4 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Internal memory | 8 GB | ||
| Storage | Hard Drive (HDD) | Quantity | 2 Pce | |
| Form factor | 2.5" | |||
| Capacity | 512 GB | |||
| Power supply - Input | 2 x Hard Drive (HDD) 2.5" 512 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz | ||
| Version | 1.4b | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 4 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||

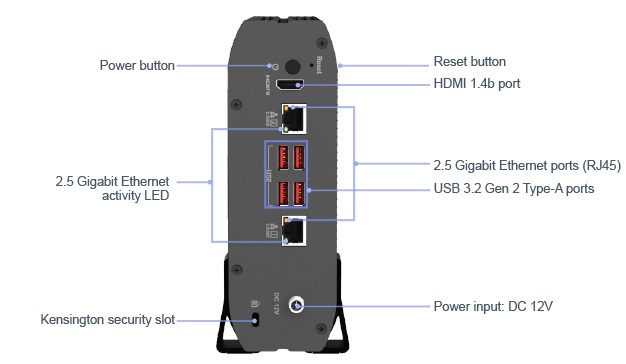

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| Safety | ||||
| Kensington Lock | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 4 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -20° down to 70°C | |||
| Dimensions | Form factor | Embedded System | ||
| Width | 290 mm | |||
| Deep | 340 mm | |||
| Height | 195 mm | |||
| Weight | 2640 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||

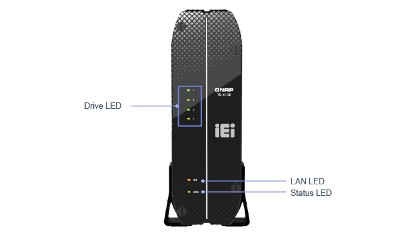

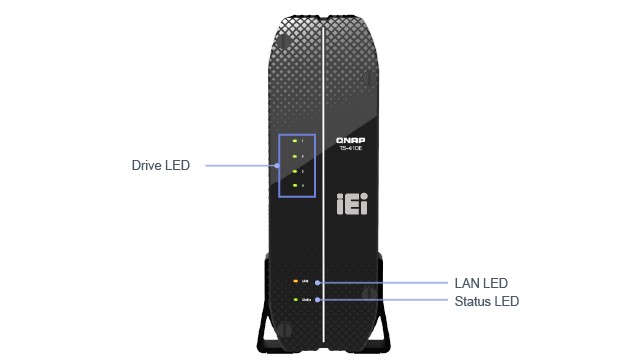

| Status indicators | Storage | 4 Pce | ||
| Gigabit Ethernet | 1 Pce | |||
| System Status | 1 Pce | |||
| Antenna holes | 1 Pce | |||
| Color | Black | |||
| Mounting option | VESA | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | BSMI, UKCA, VCCI | |||
| RoHS compliant | Yes | |||
