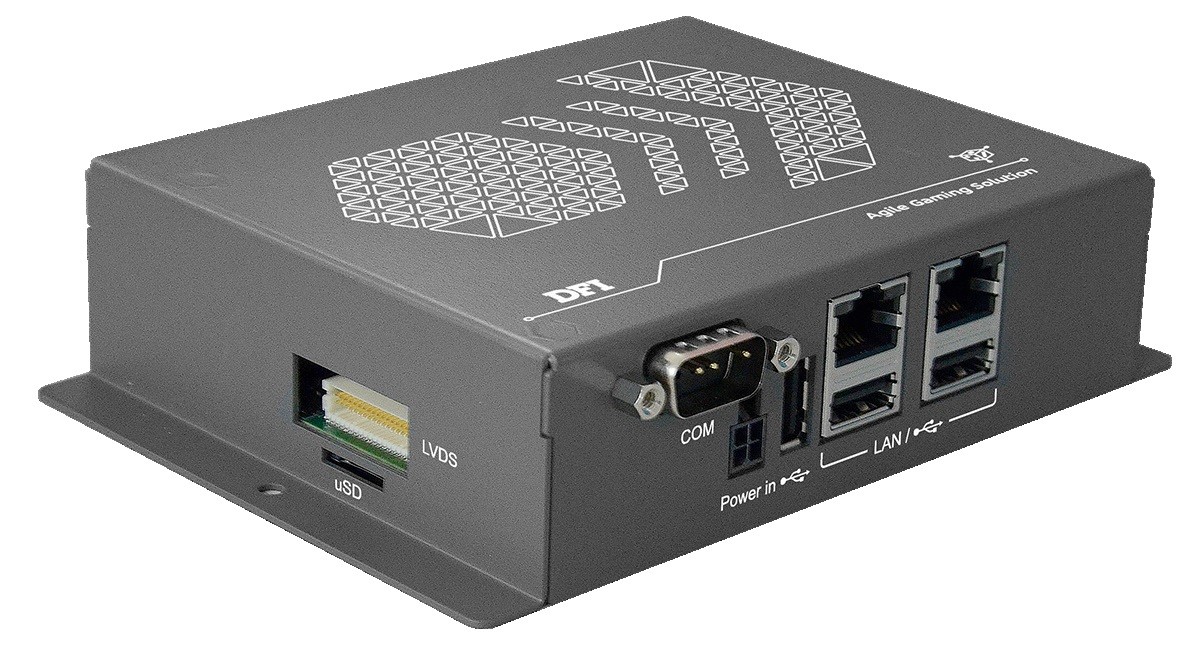

Gaming Embedded System
// Gaming Embedded System
// NXP i.MX 8M Mini Quad
// 1,8 GHz
// Passive cooled
// 1 GB RAM
// 2 x USB (Front page)
// 1 x USB (internal)
// 2 x G-LAN (Front page)
// 1 x Mini-PCIe
// 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: DFI GM310-8MM
| General information | ||||
| SKU / Item Number | GM310-8MM | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | NXP i.MX 8M Mini Quad | |||
| CPU cores | 4 Pce | |||
| Base frequency | 1,8 GHz | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 4 GB | |||
| Internal memory | 1 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 8 GB | ||
| eMMC version | 5.1 | |||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 8 GB | |||
| Graphics | ||||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe | |||
| Storage | Micro SD | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111G (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 1 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||

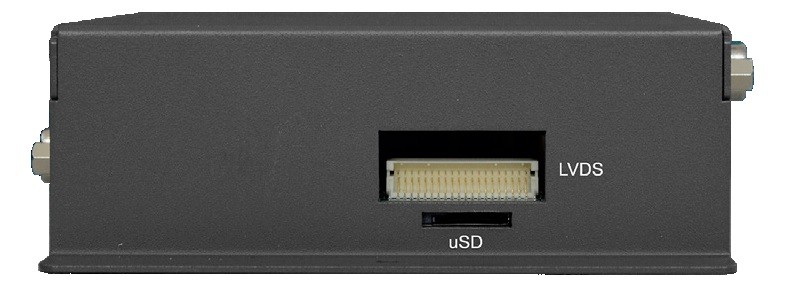

| Display | LVDS connectors | 1 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||

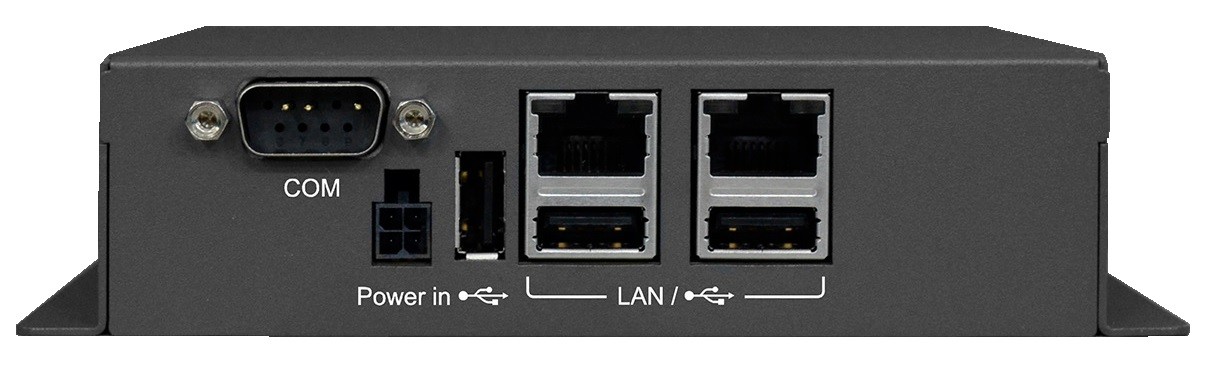

| Externe I/O (Front Panel) | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||

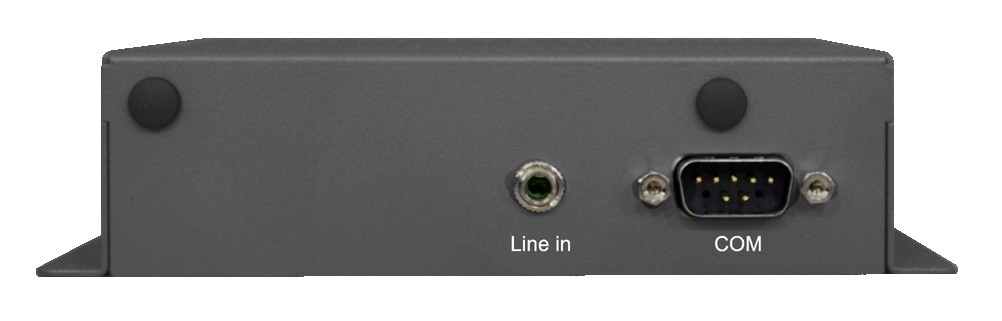

| Externe I/O (Rear Panel) | ||||
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | 10-pin terminal connector | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin terminal plug | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -5° to 60°C | ||
| Storage | -20° to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | Gaming Embedded System | ||
| Width | 143 mm | |||
| Deep | 100 mm | |||
| Height | 35 mm | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 3G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 450 g | |||
| Status indicators | System Status | 1 Pce | ||
| Color | Dark grey | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Linux | Distribution | Yocto 2.5 | ||
| Supported OS | Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
