Gaming Embedded System
// Gaming Embedded System
// [AMD Ryzen Embedded 8640U | AMD Ryzen Embedded 8645HS | AMD Ryzen Embedded 8840U | AMD Ryzen Embedded 8845HS]
// [3,3 | 3,5 | 3,8 | 4,3] GHz
// Active (fan cooling) cooled
// 4 x Display
// 6 x Serial
// 9 x USB (Front page)
// 2 x G-LAN (Front page)
// 1 x PCIe x16
// 2 x M.2 Slot
// 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

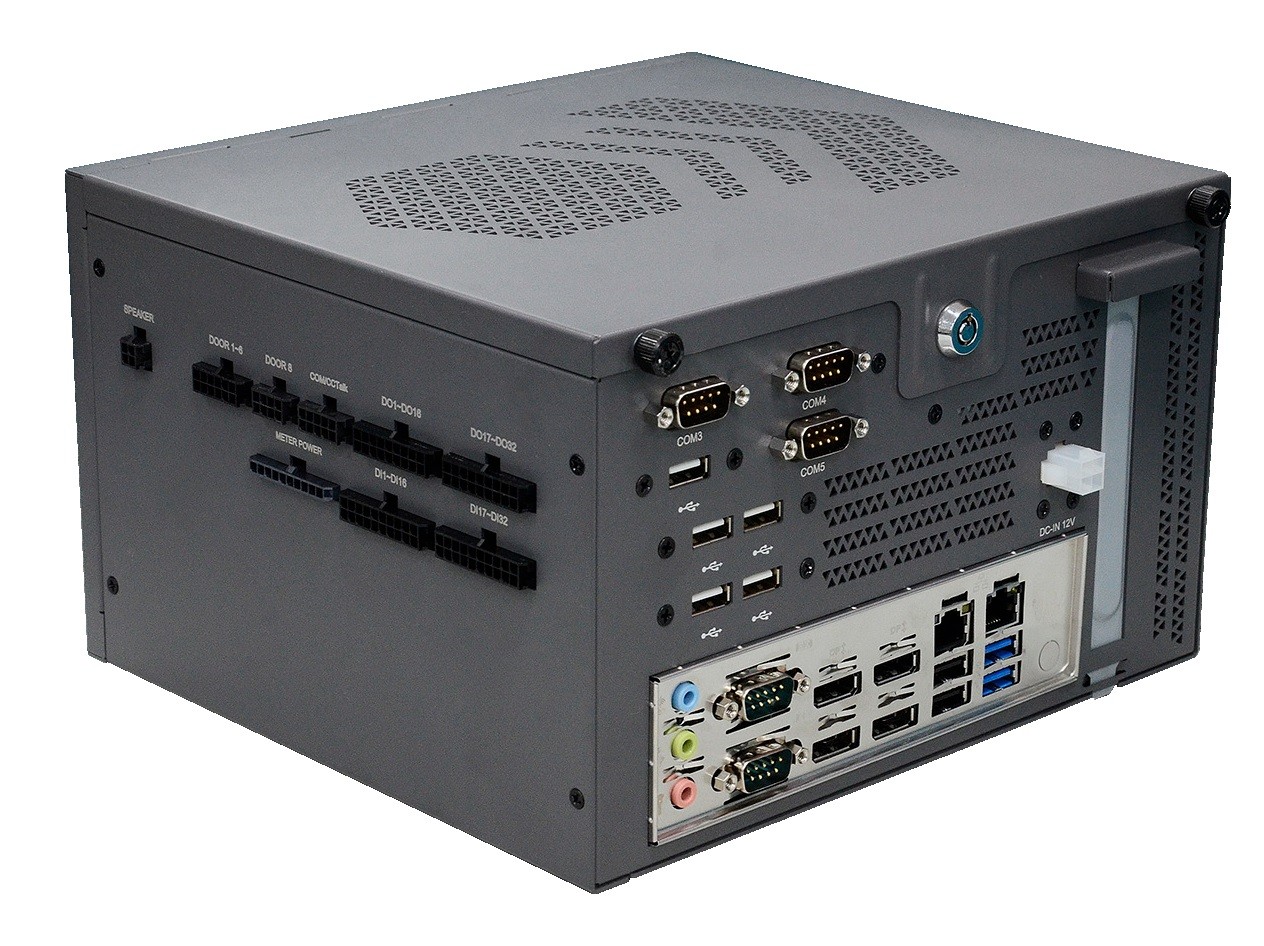

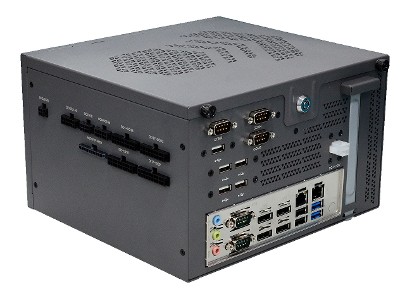

Basic Module: DFI GM841-HPF
| General information | ||||
| SKU / Item Number | GM841-HPF | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | AMD Ryzen Embedded 8000 Series | |||
| Number | AMD Ryzen Embedded 8640U, AMD Ryzen Embedded 8645HS, AMD Ryzen Embedded 8840U, AMD Ryzen Embedded 8845HS | |||
| CPU cores | 6 Pce, 8 Pce | |||
| Threads | 12 Pce, 16 Pce | |||
| Base frequency | 3,3 GHz, 3,5 GHz, 3,8 GHz, 4,3 GHz | |||
| Max Turbo Frequency | 4,9 GHz, 5 GHz, 5,1 GHz | |||
| Cache | 6 MB, 8 MB | |||
| Basic power consumption of the processor | 15 W, 35 W | |||
| Maximum Turbo Power Consumption | 30 W, 54 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| Graphics | ||||
| Performance | TOPS (INT8) | 38 | ||
| Screens (Multi-display) | 4 displays | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.2 | |||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCIe x16 | x8 signal | Generation | 4 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 3), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | A | ||
| Interface | OOB (Out Of Box), PCIe ×1 (Gen 3), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230, 3042 | |||
| M.2 Key IDs | A, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||

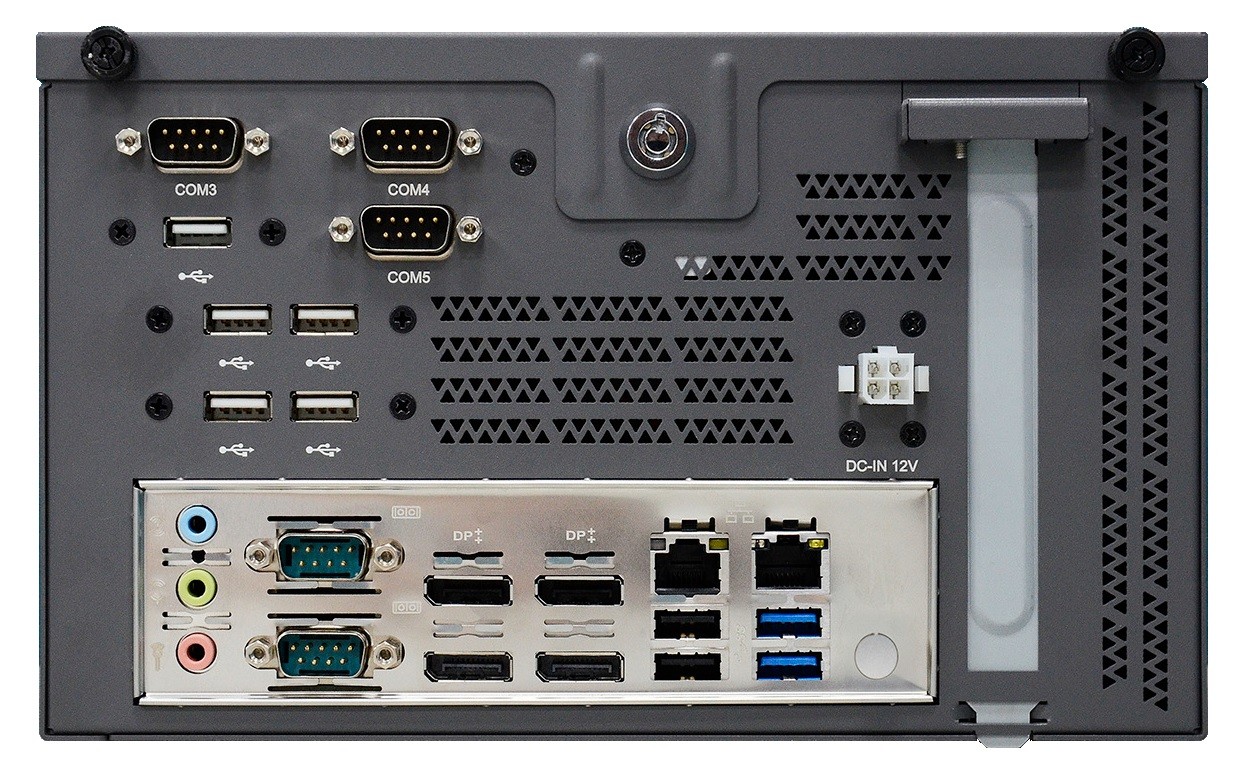

| Externe I/O (Front Panel) | ||||
| Display | DP++ | 4 Pce | ||
| Audio | S/PDIF | 1 Pce | ||
| Combo Jack | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 5 Pce | |
| Micro-B | 2 Pce | |||
| RS-232 / 422 / 485 | DB-9 | 1 Pce | ||
| USB | USB 2.0 | 7 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||

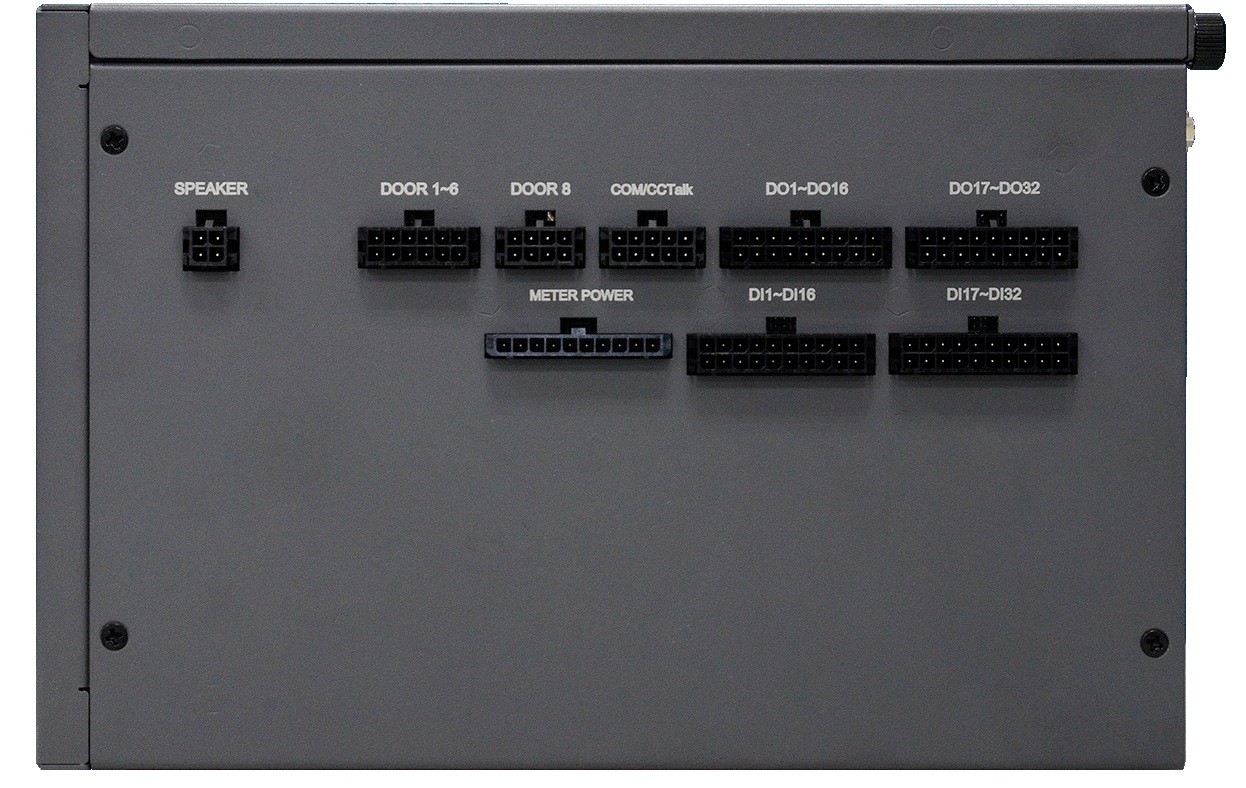

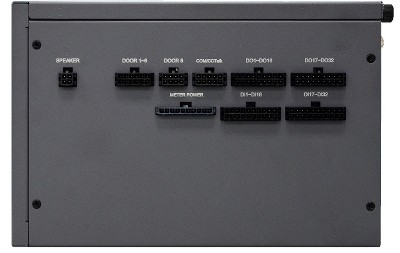

| External I/O (sidewise) | ||||
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 32-bit | |||
| NVRAM (Non-Volatile RAM) | ||||
| NVRAM (Non-Volatile RAM) | 16 MB NVRAM motherboard module | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | ATX connector plug | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 1 Pce | |
| Diameter | 80 mm | |||
| filter mat | filter mat | Yes | ||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 45°C | ||
| Storage | -20° to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | Gaming Embedded System | ||
| Width | 230 mm | |||
| Deep | 140 mm | |||
| Height | 210 mm | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 3G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 2900 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 1 Pce | ||
| Color | Dark grey | |||
| Material | Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
