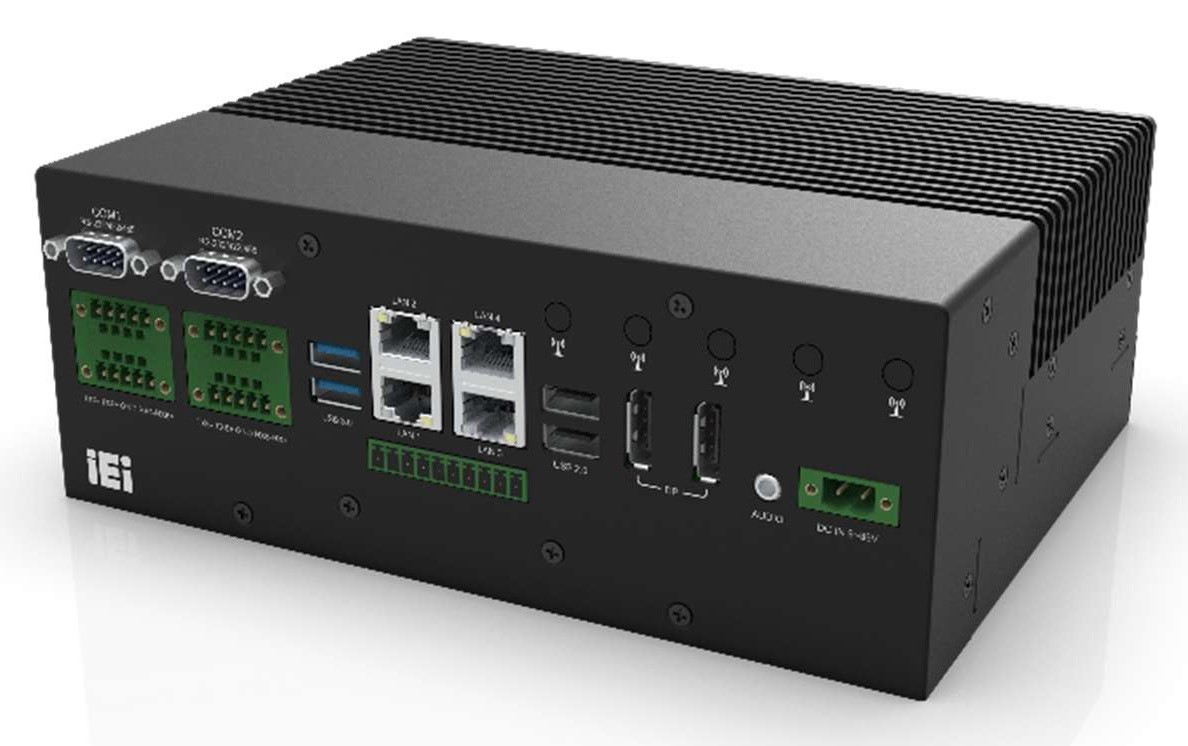

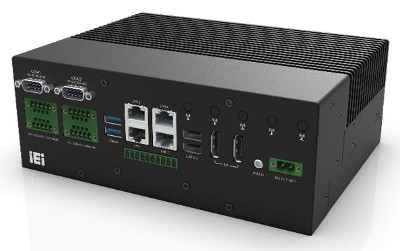

IEI MCS-DB001

MCS-DB001-1315URE, MCS-DB001-1345URE, MCS-DB001-1365URE, MCS-DB001-7305E

Marine System

PRODUCT FEATURES

// Marine System
// [Intel Celeron 7305E | Intel Core i3-1315URE | Intel Core i5-1345URE | Intel Core i7-1365URE]
// [1 | 1,2 | 1,4 | 1,7] GHz
// Passive cooled
// 2 x Display
// 4 x Serial
// 4 x USB (Front page)
// 2 x USB (Back side)
// 4 x G-LAN (Front page)
// 1 x Mini-PCIe
// 3 x M.2 Slot
// 9 to 36V

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: IEI MCS-DB001

General information
SKU / Item NumberMCS-DB001MCS-DB001-1315URE, MCS-DB001-1345URE, MCS-DB001-1365URE, MCS-DB001-7305E
Product Basic Data
ManufacturerIEI
System
ProcessorVertical SegmentEmbedded
SeriesIntel Alder Lake, Intel Raptor Lake
NumberIntel Celeron 7305E, Intel Core i3-1315URE, Intel Core i5-1345URE, Intel Core i7-1365URE
CPU cores5 Pce, 6 Pce, 10 Pce
Threads5 Pce, 8 Pce, 12 Pce
SocketBGA 1744
Base frequency1 GHz, 1,2 GHz, 1,4 GHz, 1,7 GHz
Performance Core Max Turbo Frequency4,5 GHz, 4,6 GHz, 4,9 GHz, -
Efficient-core Max Turbo Frequency3,3 GHz, 3,4 GHz, 3,7 GHz, -
Cache8 MB, 10 MB, 12 MB
Basic power consumption of the processor15 W
ChipsetSoC (System on a Chip)
MemoryStructure262-pin SO-DIMM DDR5
Memory TypeDDR5
DIMM TypeUnbuffered SO-DIMM
DIMM data transfer rate5600 MT/s
Slots2 Pce
StorageSolid State Drive (NVMe SSD)256 GB
Graphics
ProcessorIntel Iris Xe Graphics, Intel UHD Graphics
Extension
Mini-PCIeFull installation depthQuantity1 Pce
USB supportYes
PCIe Interfaces1x Mini-PCIe
M.2Slot 1Key IDM
InterfaceNVMe, PCIe ×4, SATA III
Supported dimensions2242, 2280
Slot 2Key IDE
InterfaceWiFi + Bluetooth
Supported dimensions2230
Slot 3Key IDB
Interface4G/LTE, 5G / Storage Module, USB 3.0
Supported dimensions3052
M.2 Key IDsB, E, M
StorageM.2
Network
G-LANControllerChipsetIntel I226V PCIe (10/100/1000/2500 Mbps)
Quantity2 Pce
ControllerChipsetRealtek RTL8125BG-CG (10/100/1000/2500 Mbps)
Quantity2 Pce
Network4x G-LAN
Internal I/O
Serial ATASATA R3.0 (6 Gbit/s, 600 MB/s)2 Pce

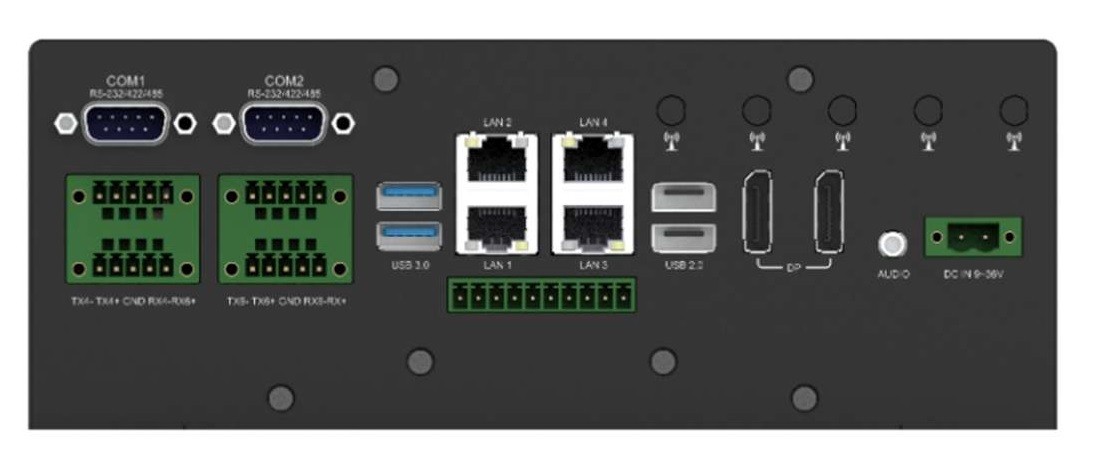

Externe I/O (Front Panel)
DisplayDP++2 Pce
AudioCombo Jack1 Pce
EthernetRJ-454 Pce
SerialRS-232 / 422 / 485DB-94 Pce
RS-422 / 4855 Pin Terminal Stecker4 Pce
Digital I/OQuantity1 Pce
Bits8-bit
Connector10-pin terminal connector

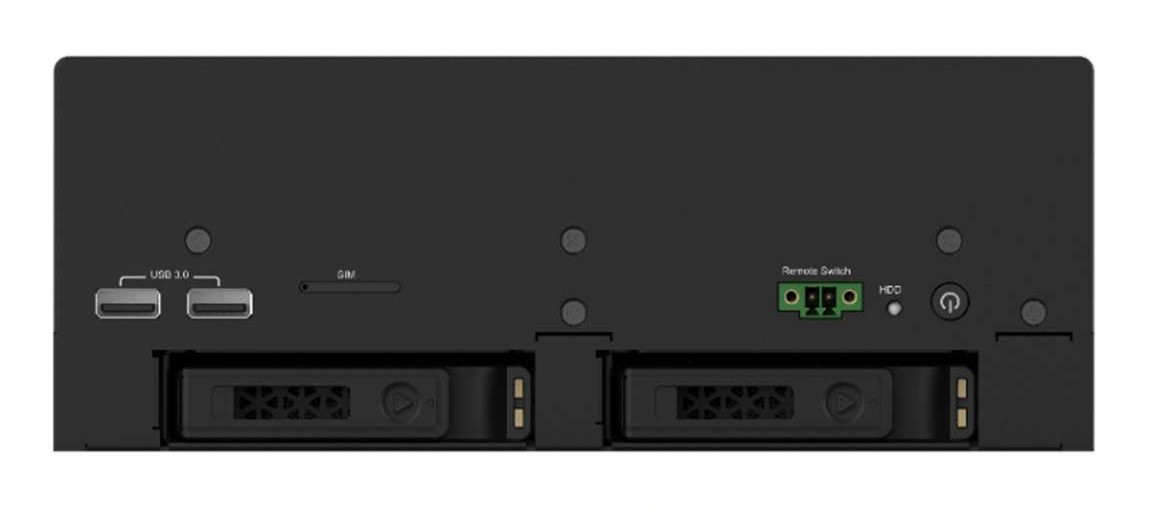

USBUSB 2.02 Pce
USB 3.02 Pce
Externe I/O (Rear Panel)
USBUSB 2.02 Pce
Safety
Trusted Platform Module (TPM)v2.0
Power Supply
Typ (Input)DCWide RangeYes
Range9 to 36V
Connector2-pin terminal connector
Power supply - InputDC: 9~36V
Cooling
ImplementationPassive
Inserts
external2.5" installation slot2 Pce
Mechanical / Environment
TemperatureOperation (SSD)-20° to 60°C
Storage-40°C to 80°C
Relative humidityOperation10 to 95%, non-condensing
Storage10 to 95%, non-condensing
DimensionsForm factorMarine System
Width216 mm
Deep164 mm
Height82 mm
VibrationReference StandardMIL-STD-810H
ShockMeasurement Data5G, half sine wave, 11 ms duration
Weight2500 g
ControlsPower1 Pce
Power (terminal connection)1 Pce
Status indicatorsStorage1 Pce
Power1 Pce
Antenna holes5 Pce
ColorBlack
MaterialAluminum
Mounting optionWall Mount
OS / Software
WindowsWindows 11Supported
Windows EmbeddedWindows 11 IoTis supported
LinuxDistributionLinux, Ubuntu 22.04
Supported OSLinux, Windows, Windows Embedded
Certificates / Conformities
CEYes
FCCClass AYes
Additional certificates / compliance approvalsIACS E10 / DNV, IEC 60945, IEC 61162
RoHS compliantYes
