Marine System
// Marine System
// Intel Core Ultra 5 Processor 125U
// Passive cooled
// 4 GB RAM
// 1 x Display
// 2 x Serial
// 5 x USB (Front page)
// 6 x G-LAN (Front page)
// 1 x M.2 Slot
// 24V
Sales only to business customers.
Delivery time: upon request

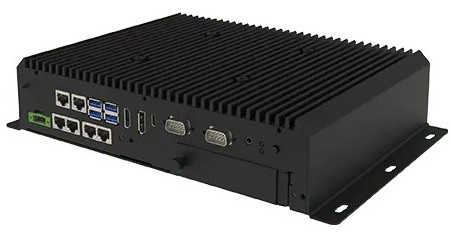

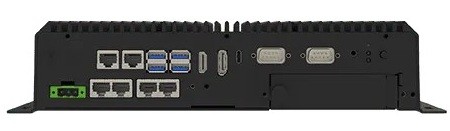

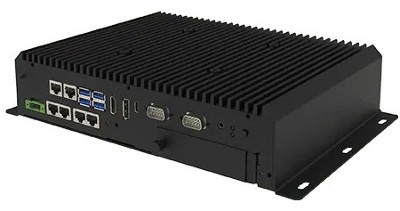

Basic Module: Winmate I330EAC-IMT-6L
| General information | ||||
| SKU / Item Number | I330EAC-IMT-6L | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Series | Intel Meteor Lake | ||
| Number | Intel Core Ultra 5 Processor 125U | |||
| CPU cores | 12 Pce | |||
| Threads | 24 Pce | |||
| Socket | BGA 2049 | |||
| Max Turbo Frequency | 4,3 GHz | |||
| Performance core base clock frequency | 1,3 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz | |||
| Efficient-core base clock frequency | 0,8 GHz | |||
| Efficient-core Max Turbo Frequency | 3,6 GHz | |||
| Cache | 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 57 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| Internal memory | 4 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 128 GB | ||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Externe I/O (Front Panel) | ||||
| Display | DisplayPort | 1 Pce | ||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 6 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 3.0 | 4 Pce | ||
| USB v3.0 (Type C) | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 24V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 24V | |||
| Typical power consumption | 50 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| external | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -15°C to 55°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Marine System | ||
| Width | 316,44 mm | |||
| Deep | 206,8 mm | |||
| Height | 66,1 mm | |||
| Vibration | Vibration | 0.7G | ||
| Shock | Measurement Data | 15G, half sine wave, 11 ms duration | ||
| Weight | 3900 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 2 Pce | ||
| Power | 1 Pce | |||
| Color | Black | |||
| Material | Aluminum | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Supported OS | Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | DNVGL-CG-0339, IACS E10 / DNV, IEC 60945 | |||
| RoHS compliant | Yes | |||
