Medical Embedded System
// Medical Embedded System
// Nvidia Jetson AGX ORIN 64 GB
// Active (fan cooling) cooled
// 64 GB RAM
// 1 x Display
// 4 x USB (Front page)
// 5 x USB (Back side)
// 4 x G-LAN (Back side)
// 1 x PCIe x8
// 1 x PCIe x16
// 1 x M.2 Slot
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech MIC-735M-IO
| General information | ||||
| SKU / Item Number | MIC-735M-IO | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A78AE | ||
| Number | Nvidia Jetson AGX ORIN 64 GB | |||
| CPU cores | 12 Pce | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 64 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| eMMC version | 5.1 | |||
| IPMI (Intelligent Platform Management Interface) | IPMI controller | Aspeed AST2600 BMC | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Processor | Nvidia Ampere | |||
| Cores | RT Cores | 2048 Pce | ||
| Tensor | 64 Pce | |||
| Memory | Broadband | 256-bit | ||
| Performance | TOPS (INT8) | 248 | ||
| DisplayPort | Version | 1.4A | ||
| Extension | ||||
| PCIe x8 | Generation | 5 | ||
| x8 signal | 1 Pce | |||
| PCIe x16 | x16 signal | Generation | 5 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x8, 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac | |
| Bluetooth | Type | v5.0 | ||
| Network | Wi-Fi, Bluetooth | |||

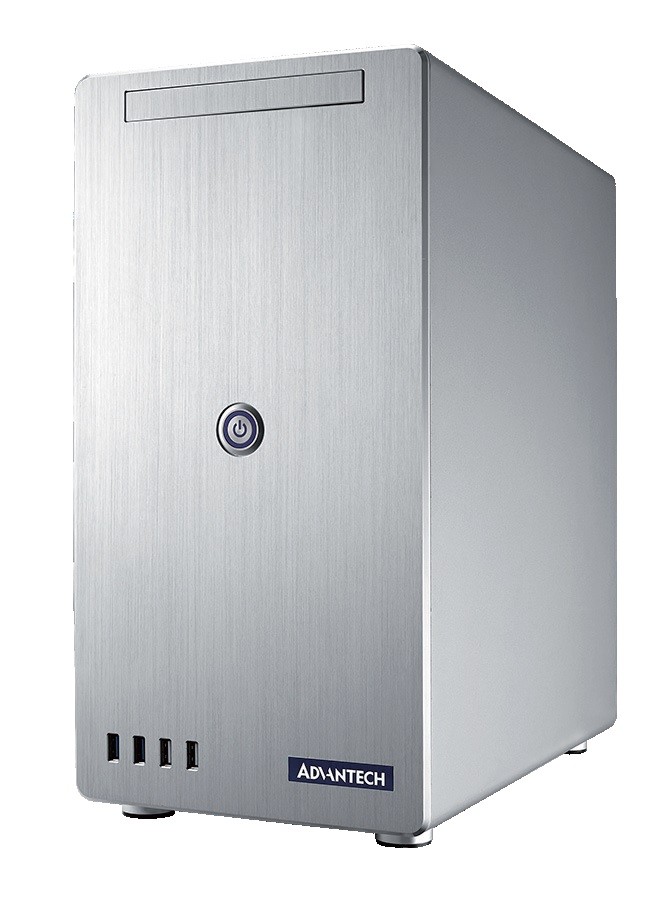

| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.0 | 2 Pce | |||

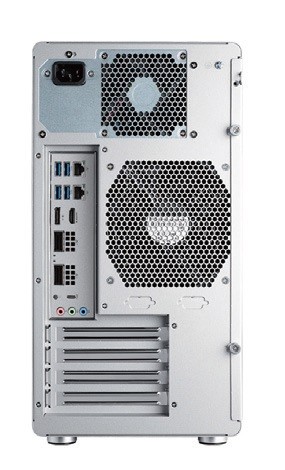

| Externe I/O (Rear Panel) | ||||
| Display | DisplayPort | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| QSFP28 | 2 Pce | |||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | AC | Modules | 1 Pce | |
| Connector | C14 | |||
| Maximum power consumption | 700 W | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 1 Pce | |
| Diameter | 120 mm | |||
| Inserts | ||||
| external | 5.25" Slim Drive Bay | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 5° to 45°C | ||
| Storage | -40°C to 75°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Storage | 10 to 95%, non-condensing | |||
| Dimensions | Form factor | Medical Embedded System | ||
| Width | 192 mm | |||
| Deep | 376,7 mm | |||
| Height | 338,5 mm | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Weight | 11000 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Slots and Brackets | Standard | 4 Pce | ||
| Color | Silver | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | IEC 60601-1:2015 | |||
| RoHS compliant | Yes | |||
