Network Appliance System
// 19-inch
// Intel Bartlett Lake
// 2 x USB (Front page)
// 10 x G-LAN (Front page)
// 2 x PCIe x8
// 1 x M.2 Slot
Sales only to business customers.
Delivery time: upon request
Basic Module: IBASE INA3609
| General information | ||||
| SKU / Item Number | INA3609 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Bartlett Lake | ||
| Socket | LGA 1700 (H6) | |||
| Chipset | Intel R680E | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 128 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| Extension | ||||
| PCIe x8 | Generation | 5 | ||
| x8 signal | 2 Pce | |||
| PCIe Interfaces | 2x PCIe x8 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2, SATA DOM (Disk on Module) | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 4 Pce | |||
| Controller | Chipset | Intel I210IS PCIe (10/100/1000 Mbps) | ||
| Quantity | 4 Pce | |||
| Controller | Chipset | Intel X710-AT2 (10 Gbps) | ||
| Quantity | 1 Pce | |||
| Network | 9x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 3 Pce | ||

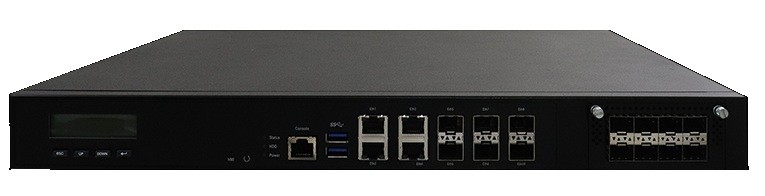

| Externe I/O (Front Panel) | ||||
| Display | LCM Display | 2 x 16 characters | ||
| Ethernet | RJ-45 | 4 Pce | ||
| SFP (Small Form-factor Pluggable) | 4 Pce | |||
| SFP+ (Enhanced Small Form-factor Pluggable) | 2 Pce | |||
| USB | USB 3.0 | 2 Pce | ||
| Console | RJ45 Connector | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||

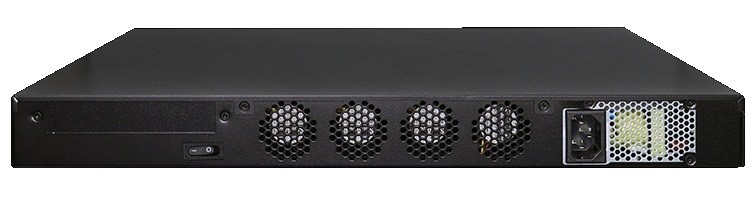

| Power Supply | ||||
| Typ (Input) | AC | Modules | 2 Pce | |
| Connector | C14 | |||
| Redundant | Yes, dual AC | |||
| Maximum power consumption | 600 W | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° down to 70°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 438 mm | |||
| Deep | 420 mm | |||
| Height | 44 mm | |||
| Height units | 1 HE | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| System Status | 1 Pce | |||
| Color | Black | |||
| Mounting option | Rackmount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
