Vehicle (In-Vehicle) System
// Vehicle (In-Vehicle) System
// Intel Bartlett Lake
// Passive cooled
// 7 x Display
// 2 x Serial
// 2 x USB (Front page)
// 2 x USB (Back side)
// 16 x G-LAN (Front page)
// 1 x Mini-PCIe
// 3 x M.2 Slot
// 9 to 48V
Sales only to business customers.
Delivery time: upon request
Basic Module: DFI VC500-BTS
| General information | ||||
| SKU / Item Number | VC500-BTS | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Intel Bartlett Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel R680E | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| BIOS | AMI SPI 128 Mbit | |||
| Graphics | ||||
| HDMI | Maximum resolution | 4096 x 2160 at 24 Hz | ||
| Version | 1.4b | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | A, E | |
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | A, E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | A | ||
| Interface | OOB (Out Of Box), UART, USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 4 | Key ID | B + M | ||
| Interface | PCIe ×4 (Gen. 3), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 5 | Key ID | B + M | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), USB 2.0, USB 3.0 | |||
| Supported dimensions | 3042, 3052 | |||
| M.2 Key IDs | A, E | |||
| SIM | Quantity | 2 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888 | |||

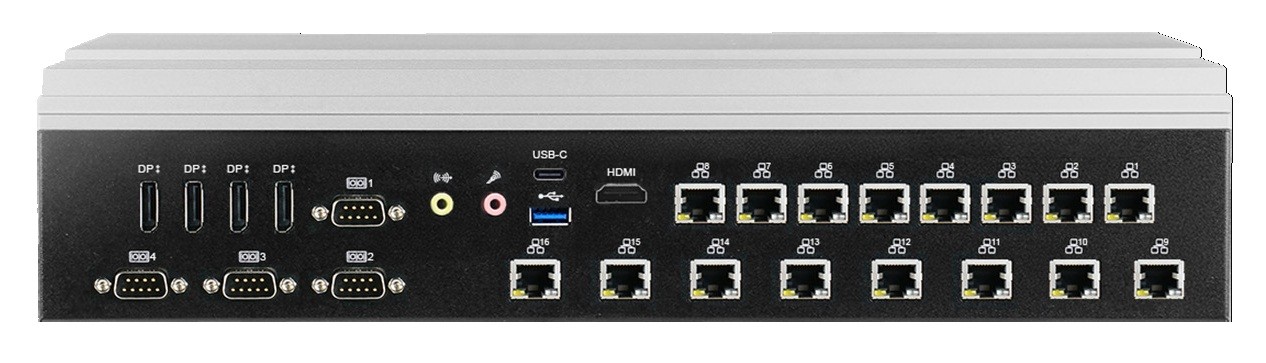

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP++ | 4 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 with PoE | 16 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 1) | 1 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| CAN bus | Connector | DB-9 | ||
| piece | 2 Pce | |||

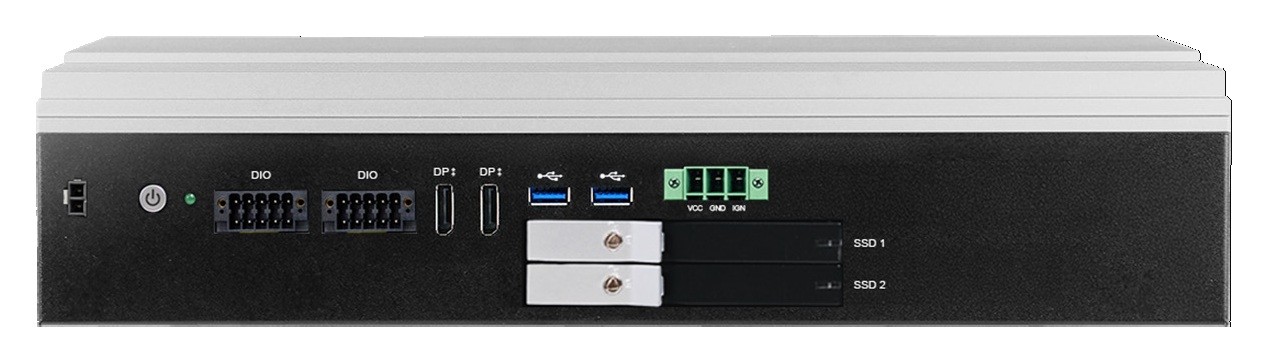

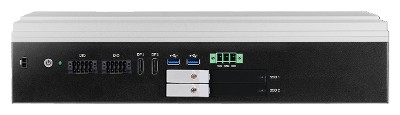

| Externe I/O (Rear Panel) | ||||
| Display | DP++ | 2 Pce | ||
| Digital I/O | Quantity | 2 Pce | ||
| Bits | 8-bit | |||
| Connector | 10-pin terminal connector | |||
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 48V | |||
| Ignition (IGN) | Yes | |||
| Power supply - Input | DC: 9–48V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| external | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -25°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | Vehicle (In-Vehicle) System | ||
| Width | 308 mm | |||
| Deep | 222,3 mm | |||
| Height | 97,88 mm | |||
| IP Rating | IP40 (completely) | |||
| Vibration | Reference Standard | MIL-STD-810G | ||
| Shock | Reference Standard | MIL-STD-810G | ||
| Weight | 9850 g | |||
| Controls | Power | 1 Pce | ||
| Remote | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| PoE (Power over Ethernet) | 8 Pce | |||
| Antenna holes | 7 Pce | |||
| Color | Black / silver | |||
| Material | Aluminum, Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | E-mark, UKCA | |||
| RoHS compliant | Yes | |||
