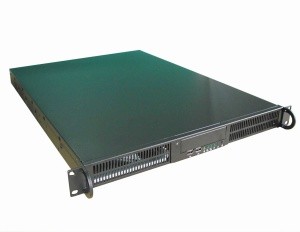

1U 19" Rack Case
// Guanghsing
// GHI-104DX
// -
Sales only to business customers.
Delivery time: upon request
Basic Module: Guanghsing GHI-104DX
| General information | ||||
| SKU / Item Number | GHI-104DX | |||
| Product Basic Data | ||||
| Manufacturer | Guanghsing | |||
| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 2 Pce | ||
| Inserts | ||||
| Internal | 3.5" Drive Bay | 2 Pce | ||
| external | 3.5" Drive Bay | 1 Pce | ||
| 5.25" Drive Bay | 1 Pce | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 3 Pce | |
| Diameter | 40 mm | |||
| height | 20 mm | |||
| Air flow (at 100%) | 7 cfm | |||
| Fan | Quantity | 5 Pce | ||
| Diameter | 40 mm | |||
| height | 28 mm | |||
| Air flow (at 100%) | 15 cfm | |||
| Motherboards | ||||
| Supported motherboards | E-ATX | |||
| Mechanical / Environment | ||||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 483 mm | |||
| Deep | 605 mm | |||
| Height | 44 mm | |||
| Height units | 1 HE | |||
| Weight | 10000 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 1 Pce | ||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | Rackmount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
