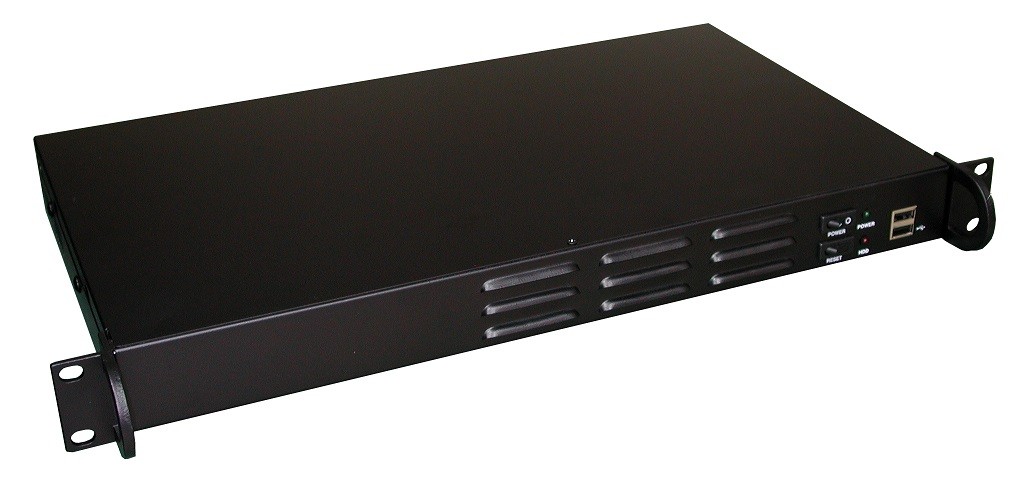

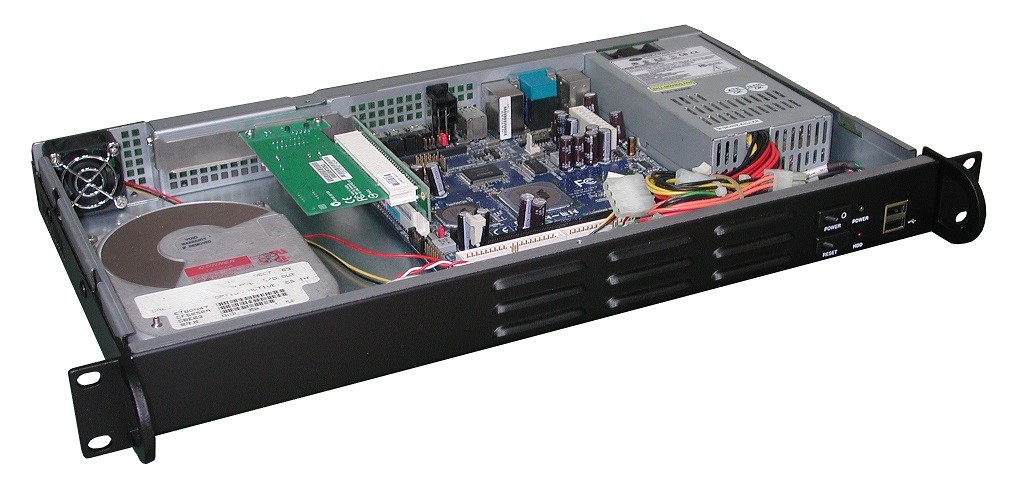

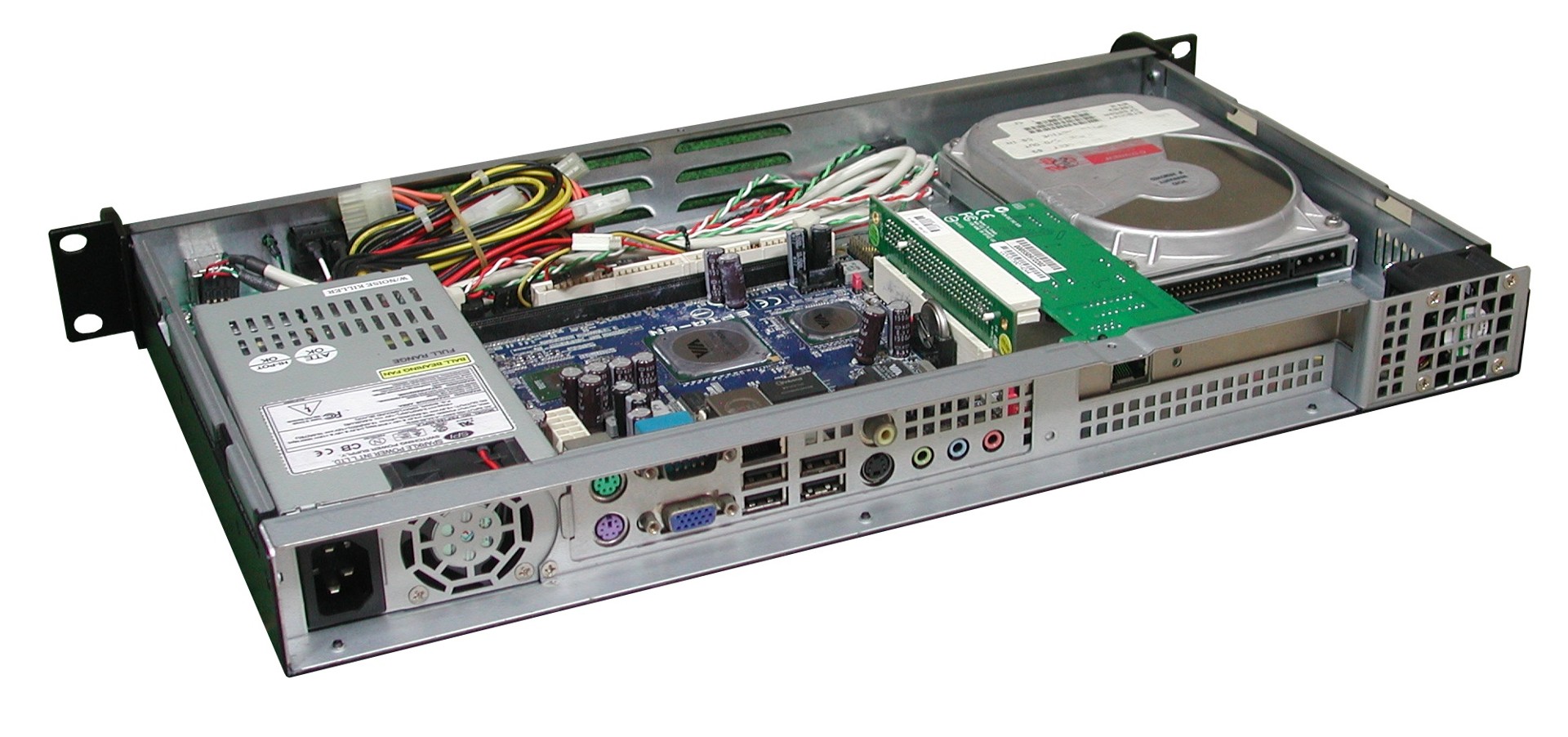

Guanghsing GHI-106A

1U 19" Rack Case

PRODUCT FEATURES

// Guanghsing
// GHI-106A
// -

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Guanghsing GHI-106A

General information
	SKU / Item Number			GHI-106A
Product Basic Data
	Manufacturer			Guanghsing
Externe I/O (Front Panel)
	USB	USB 2.0		2 Pce
Inserts
	Internal	3.5" Drive Bay		1 Pce
Cooling
	Implementation			Active (fan cooling)
	Active	Fan	Quantity	1 Pce
			Diameter	40 mm
			height	20 mm
			Air flow (at 100%)	7 cfm
Motherboards
	Supported motherboards			Mini-ITX
Mechanical / Environment
	Relative humidity	Operation		5 to 95%, non-condensing
	Dimensions	Form factor		19-inch
		Width		483 mm
		Deep		250 mm
		Height		44 mm
		Height units		1 HE
	Weight			5000 g
	Controls	Power		1 Pce
		Reset		1 Pce
	Status indicators	Storage		1 Pce
		Power		1 Pce
	Slots and Brackets	Standard		1 Pce
	Color			Black
	Material			Steel
Certificates / Conformities
	CE			Yes
	Additional certificates / compliance approvals			REACH
	RoHS compliant			Yes
