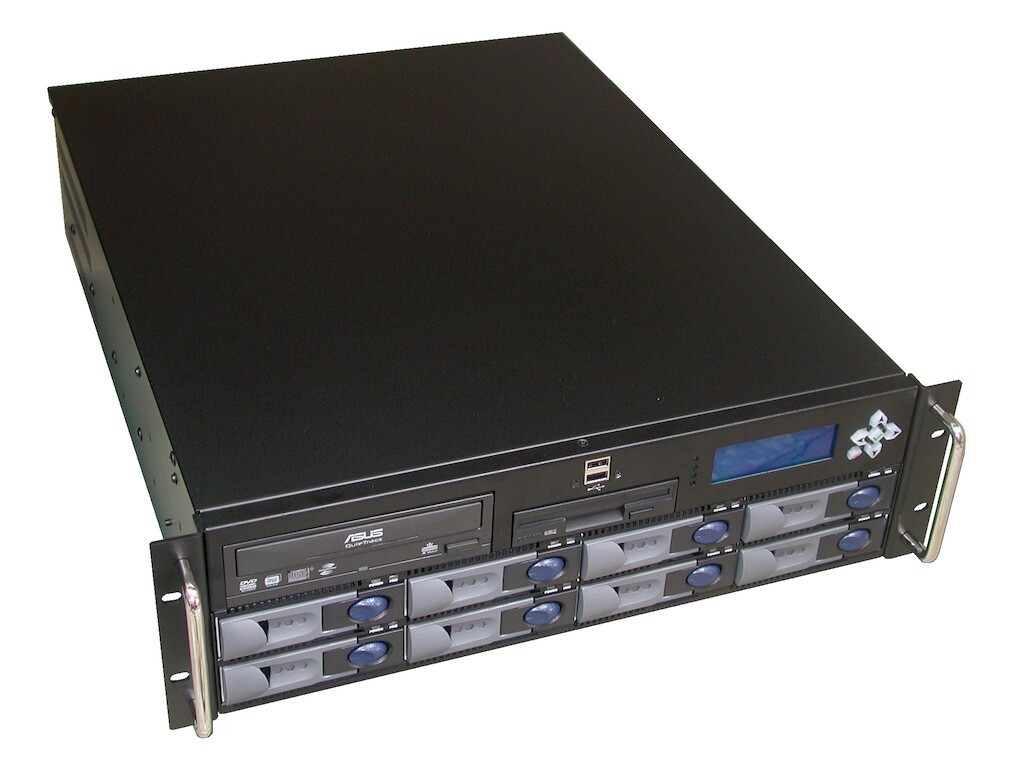

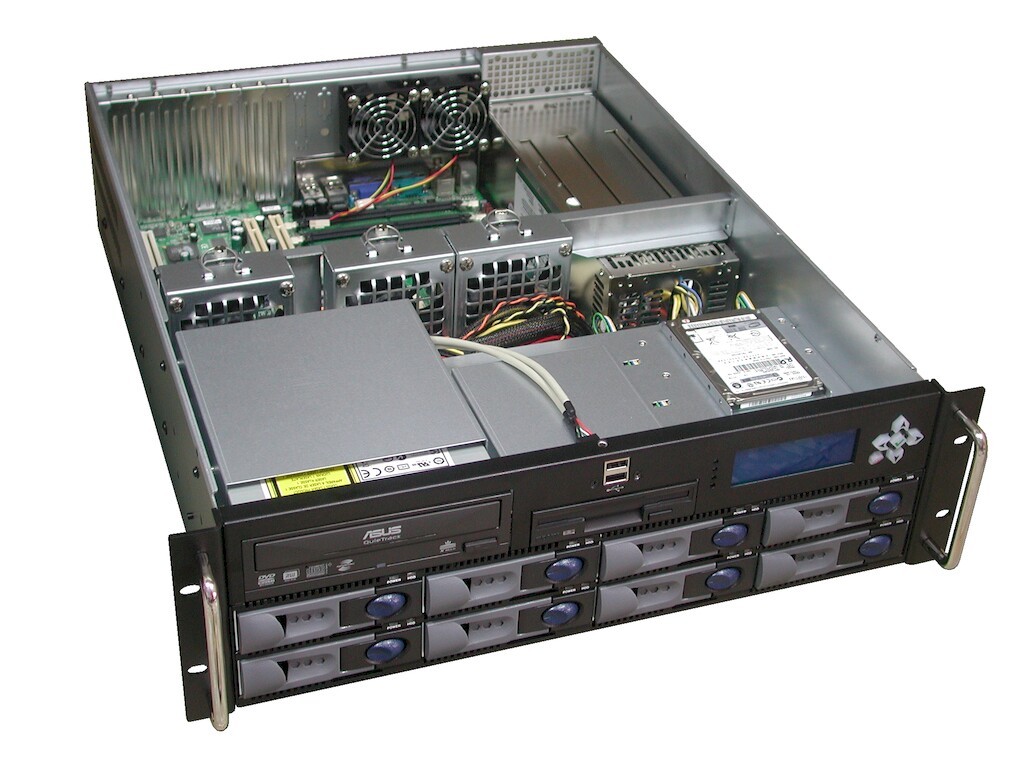

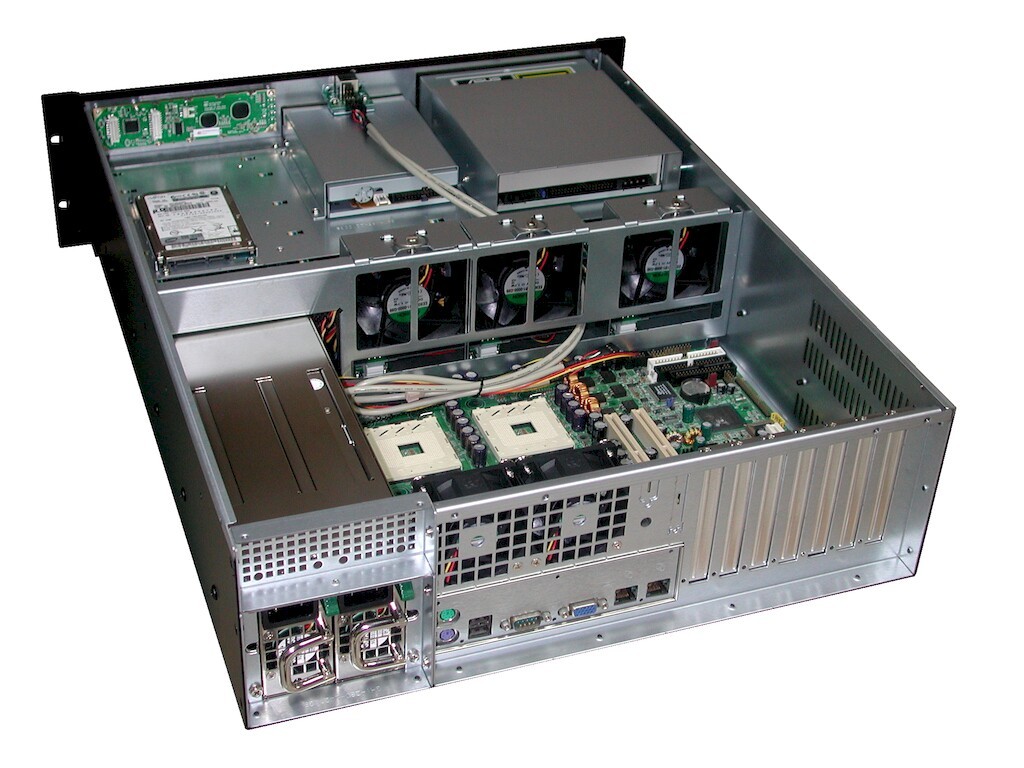

3U 19" Rack Case
// Guanghsing
// GHI-M35
// -
Sales only to business customers.
Delivery time: upon request
Basic Module: Guanghsing GHI-M35
| General information | ||||
| SKU / Item Number | GHI-M35 | |||
| Product Basic Data | ||||
| Manufacturer | Guanghsing | |||
| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 2 Pce | ||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| external | 2.5" installation slot | 8 Pce | ||
| 3.5" Drive Bay | 1 Pce | |||
| 5.25" Drive Bay | 1 Pce | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 3 Pce | |
| Diameter | 80 mm | |||
| Air flow (at 100%) | 45 cfm | |||
| filter mat | Removable filter mat from the outside | Yes | ||
| Motherboards | ||||
| Supported motherboards | ATX | |||
| Mechanical / Environment | ||||
| Dimensions | Form factor | 19-inch | ||
| Width | 483 mm | |||
| Deep | 559 mm | |||
| Height | 133 mm | |||
| Height units | 3 HE | |||
| Weight | 17000 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Slots and Brackets | Standard | 7 Pce | ||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | Rackmount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| Additional certificates / compliance approvals | REACH | |||
| RoHS compliant | Yes | |||
