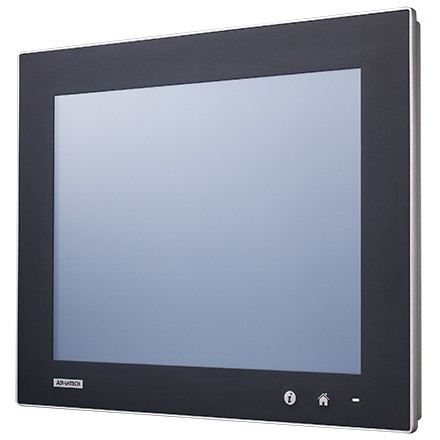

Industrial Panel-Mount Display
// 15" TFT LCD
// Touchscreen (Analog Resistive)
// IP65 (front)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech FPM-1150G
| General information | ||||
| SKU / Item Number | FPM-1150G | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Display | ||||
| Display Typ | 15" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Max. Colors | 16.2M | |||
| Contrast | 2000:1 | |||
| Luminance | 300 cd/m² | |||
| Viewing angle | Horizontal | 160 ° | ||
| Vertical | 140 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 70000 h | |||
| Touch Screen | Type | Analog Resistive | ||
| Interface | USB | |||

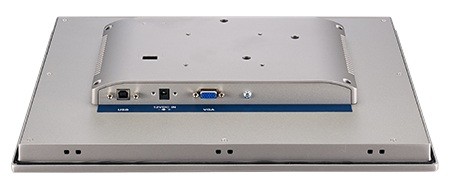

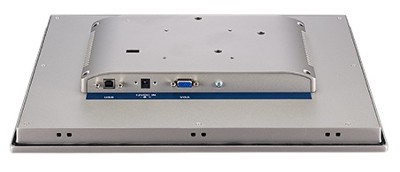

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce, - | ||
| HDMI | 1 Pce, - | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | 15-inch | ||
| Width | 392,3 mm | |||
| Deep | 51,2 mm | |||
| Height | 313,6 mm | |||
| IP Rating | IP65 (front) | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Weight | 4000 g | |||
| Color | Black / silver | |||
| Material | Aluminum | |||
| Mounting option | Panel Mounting, VESA, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| CCC | Yes | |||
| RoHS compliant | Yes | |||
