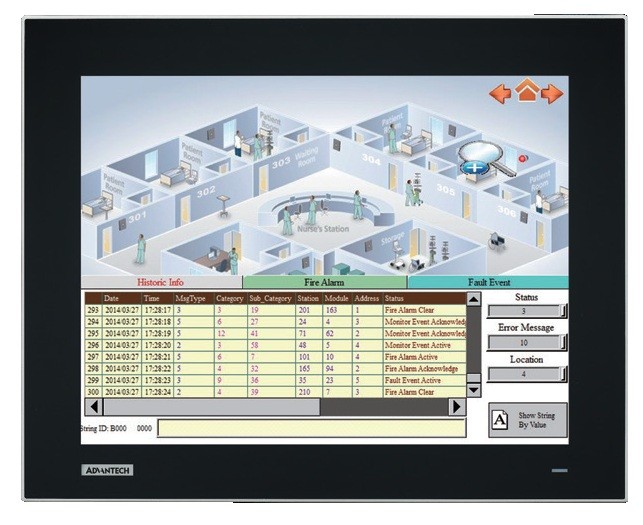

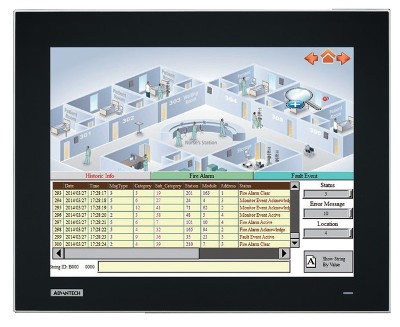

Industrial Panel-Mount Display
// 15" TFT LCD
// Touchscreen (Analog Resistive)
// IP66 (front side)
// Power Supply DC [12V | 24V]
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech FPM-215
| General information | ||||
| SKU / Item Number | FPM-215 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Display | ||||
| Display Typ | 15" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Max. Colors | 16.2M | |||
| Contrast | 2000:1 | |||
| Viewing angle | Horizontal | 176 ° | ||
| Vertical | 176 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 70000 h | |||
| Touch Screen | Type | Analog Resistive | ||
| Light Transmission | 75 % | |||
| Interface | USB | |||

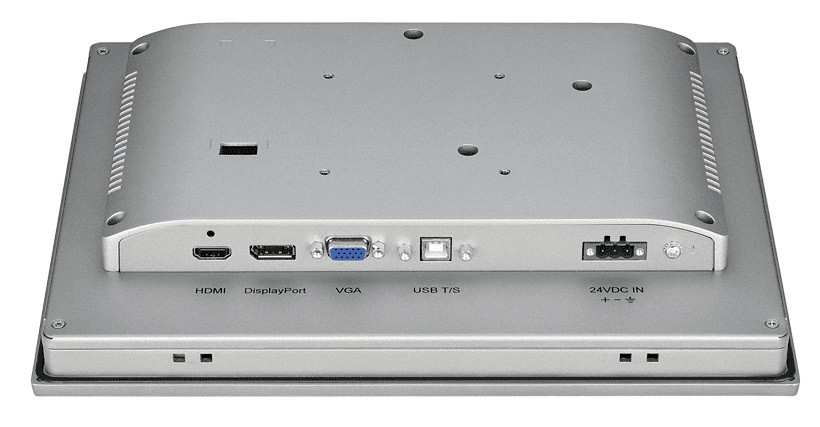

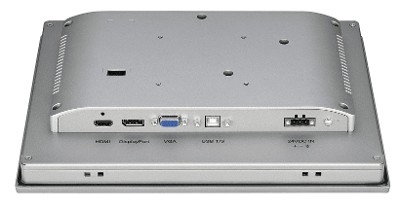

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DisplayPort | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V, 24V | |
| Connector | 3-pin terminal connector, Male connector (screw-in) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 454 mm | |||
| Deep | 51,5 mm | |||
| Height | 379,8 mm | |||
| IP Rating | IP66 (front side) | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Weight | 6200 g | |||
| Material | Aluminum, Magnesium | |||
| Mounting option | Panel Mounting, VESA, Wall Mount | |||
| Accessoires | Made in China, Made in Taiwan | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB, KC | |||
| RoHS compliant | Yes | |||
