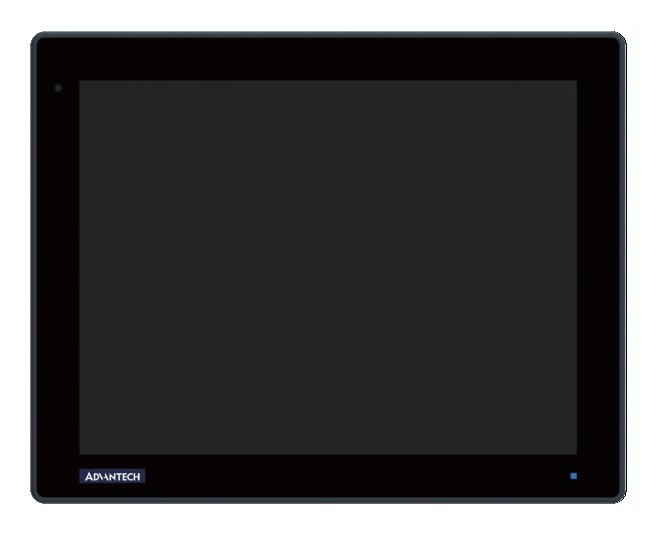

Advantech FPM-315S

Industrial Panel-Mount Display

PRODUCT FEATURES

// 15" TFT LCD
// Touchscreen (Capacitive)
// IP66 (front side)
// 1 x USB (Back side)
// Power Supply DC 12 to 24V

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Advantech FPM-315S

General information
	SKU / Item Number			FPM-315S
Product Basic Data
	Manufacturer			Advantech
	Product ID			FPM-315S-P5AE
Display
	Display Typ			15" TFT LCD
	Max. Resolution			1024 x 768
	Aspect Ratio			4 : 3
	Max. Colors			16.7 million
	Contrast			2500:1
	Luminance			1000 cd/m²
	Viewing angle	Horizontal		176 °
		Vertical		176 °
	Backlight	Type		LED
		Lifetime		50000 h
	Touch Screen	Type		Capacitive
		Interface		USB
		Multitouch		10-point
Externe I/O (Rear Panel)
	Display	VGA		1 Pce
		HDMI		1 Pce
		DisplayPort		1 Pce
	USB	USB 2.0		1 Pce
Power Supply
	Typ (Input)	DC	Wide Range	Yes
			Range	12 to 24V
			Connector	2-pin terminal connector
	Power supply - Input			DC: 12 to 24V
Mechanical / Environment
	Temperature	Operation		-20° down to 70°C
		Storage		-30°C to 80°C
	Relative humidity	Operation		5 to 95%, non-condensing
		Storage		5 to 95%, non-condensing
	Dimensions	Form factor		15-inch
		Width		359,5 mm
		Deep		49,8 mm
		Height		283,5 mm
	IP Rating			IP66 (front side)
	Vibration	Vibration		1G, 5 to 500 Hz
	Weight			4800 g
	Controls	Power		1 Pce
	Status indicators	System Status		1 Pce
	Color			Black
	Material			Aluminum
	Mounting option			Base (or stand), Panel Mounting, VESA, Wall Mount
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class A		Yes
	CCC			Yes
	Additional certificates / compliance approvals			CB
	RoHS compliant			Yes
	Conforms to EuP/ErP v2.0			Yes
