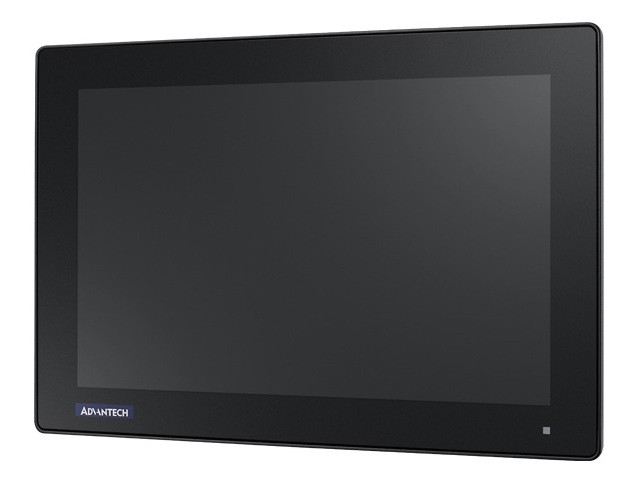

Advantech FPM-710SW

Industrial Panel-Mount Display

PRODUCT FEATURES

// 10.1" TFT LCD
// Touchscreen (Capacitive)
// IP66 (front side)
// 1 x USB (Back side)
// Power Supply DC 12 to 24V

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Advantech FPM-710SW

General information
	SKU / Item Number			FPM-710SW
Product Basic Data
	Manufacturer			Advantech
Display
	Display Typ			10.1" TFT LCD
	Max. Resolution			1920 x 1200
	Aspect Ratio			8 : 5
	Max. Colors			16.7 million
	Contrast			800:1
	Luminance			380 cd/m²
	Viewing angle	Horizontal		178 °
		Vertical		178 °
	Backlight	Type		LED
		Lifetime		30000 h
	Touch Screen	Type		Capacitive
		Interface		USB
		Multitouch		10-point

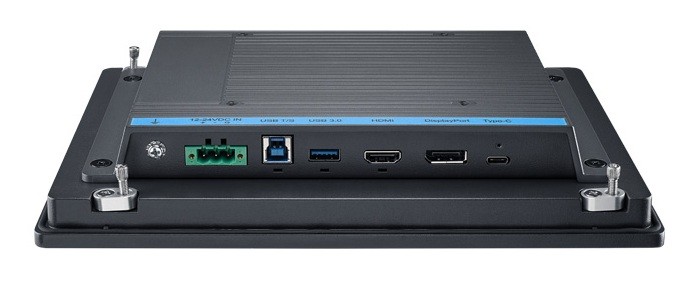

Externe I/O (Rear Panel)
	Display	HDMI		1 Pce
		DisplayPort		1 Pce
		DP USB-C		1 Pce
	USB	USB 3.0		1 Pce
Power Supply
	Typ (Input)	DC	Wide Range	Yes
			Range	12 to 24V
			Connector	3-pin terminal connector
	Power supply - Input			DC: 12 to 24V
Mechanical / Environment
	Temperature	Operation		-10°C to 50°C
		Storage		-20° to 60°C
	Relative humidity	Operation		5 to 95%, non-condensing
	Dimensions	Form factor		10.1"
		Width		260,5 mm
		Deep		45 mm
		Height		179,1 mm
	IP Rating			IP66 (front side)
	Vibration	Vibration		1G, 5 to 500 Hz
	Weight			1100 g
	Color			Black
	Material			Aluminum
	Mounting option			Base (or stand), Panel Mounting, VESA, Wall Mount
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class A		Yes
	CCC			Yes
	Additional certificates / compliance approvals			BSMI, CB, KC
	RoHS compliant			Yes
