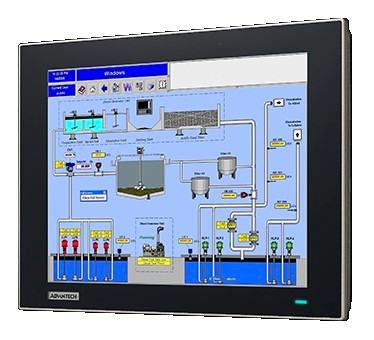

Industrial Panel-Mount Display
// 12.1" TFT LCD
// Touchscreen (Analog Resistive)
// IP66 (front side)
// Power Supply DC 24V
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech FPM-7121T
| General information | ||||
| SKU / Item Number | FPM-7121T | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Product ID | FPM-7121T-R3AE | |||
| Display | ||||
| Display Typ | 12.1" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Max. Colors | 16.2M | |||
| Contrast | 700:1 | |||
| Luminance | 600 cd/m² | |||
| Viewing angle | Horizontal | 160 ° | ||
| Vertical | 140 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Analog Resistive | ||
| Light Transmission | 75 % | |||
| Interface | RS-232 / USB | |||

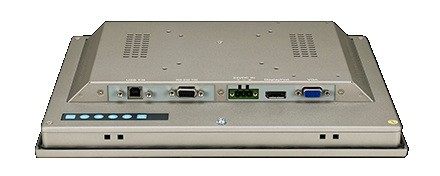

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 24V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 24V | |||
| Typical power consumption | 15 W | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 12.1" | ||
| IP Rating | IP66 (front side) | |||
| Weight | 2600 g | |||
| Material | Magnesium, Steel | |||
| Mounting option | Base (or stand), Panel Mounting, VESA, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI | |||
| RoHS compliant | Yes | |||
