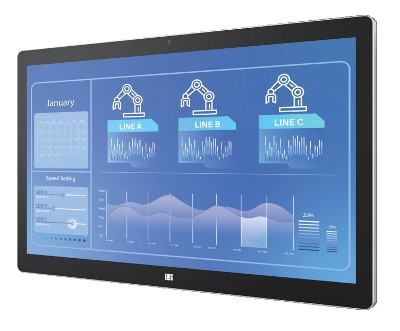

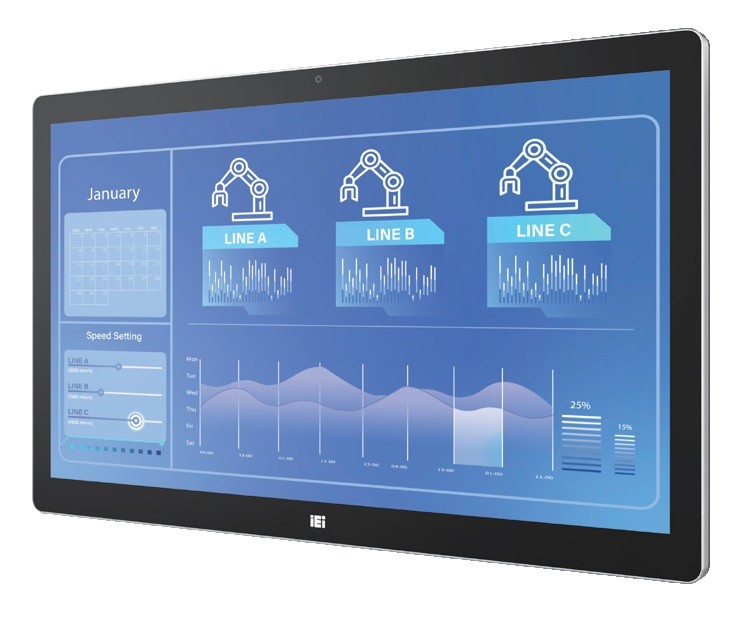

Industrial Panel-Mount Display
// 31,5" TFT-LCD
// Touchscreen (Capacitive)
// IP65 (front)
// 4 x USB (Back side)
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: IEI DM2-W315Q
| General information | ||||
| SKU / Item Number | DM2-W315Q | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| Display | ||||
| Display Typ | 31,5" TFT-LCD | |||
| Max. Resolution | 3840 x 2160 | |||
| Aspect Ratio | 16 : 9 | |||
| Max. Colors | 16.7 million | |||
| Contrast | 1000:1 | |||
| Luminance | 350 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 30000 h | |||
| Touch Screen | Type | Capacitive | ||
| Multitouch | 10-point | |||
| Audio | Speaker | 2 Pce, - | ||
| Watt | 2 W, - | |||
| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DisplayPort | 1 Pce | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| USB | USB 3.2 (Gen 1) | 4 Pce | ||
| USB 3.2 (Gen 1, Type B) | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | DC Power Jack | |||
| DC | Wide Range | Yes | ||
| Range | 9 to 36V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 9~36V, 9~36V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 31.5" | ||
| Width | 738,8 mm | |||
| Deep | 52 mm | |||
| Height | 448,4 mm | |||
| IP Rating | IP65 (front) | |||
| Vibration | Reference Standard | MIL-STD-810F | ||
| Shock | Measurement Data | 5G, half sine wave, 11 ms duration | ||
| Camera | Front | Resolution | 1 MP, - | |
| Color | Black / silver | |||
| Coating | Coating | Yes | ||
| Material | Anti-Glare Glas | |||
| Material | Aluminum, Steel | |||
| Mounting option | Panel Mounting, VESA | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
