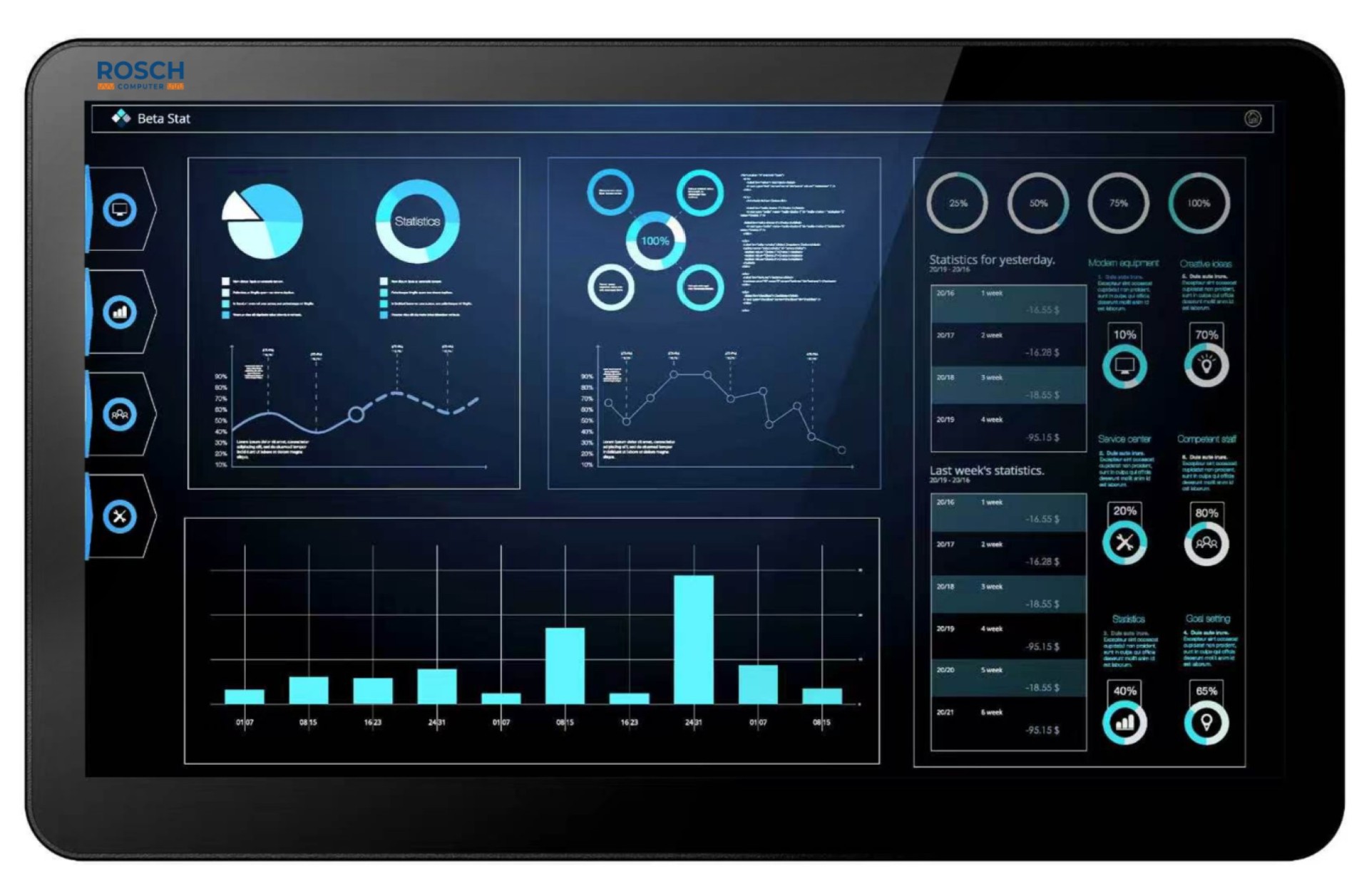

Rosch Computer RDM-133P-FHD

Industrial Panel-Mount Display

PRODUCT FEATURES

// 13.3" TFT LCD
// Touchscreen (Capacitive)
// IP65 (front)
// 1 x USB (Back side)
// Power Supply DC 12 to 24V

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Rosch Computer RDM-133P-FHD

General information
	SKU / Item Number			RDM-133P-FHD
Product Basic Data
	Manufacturer			Rosch Computer
Display
	Display Typ			13.3" TFT LCD
	Max. Resolution			1920 x 1080
	Aspect Ratio			16 : 9
	Max. Colors			16.7 million
	Contrast			1000:1
	Luminance			350 cd/m²
	Viewing angle	Horizontal		170 °
		Vertical		170 °
	Backlight	Type		LED
		Lifetime		30000 h
	Touch Screen	Type		Capacitive
		Light Transmission		87 %
		Interface		USB
Externe I/O (Rear Panel)
	Display	VGA		1 Pce
		HDMI		1 Pce
		DVI	DVI-D signal	1 Pce
	USB	USB 2.0		1 Pce
Power Supply
	Typ (Input)	DC	Wide Range	Yes
			Range	12 to 24V
			Connector	2-pin terminal connector
	Power supply - Input			DC: 12 to 24V
	Typical power consumption			10 W
Mechanical / Environment
	Temperature	Operation		-10°C to 50°C
		Storage		-20° to 60°C
	Relative humidity	Operation		10 to 95%, non-condensing
	Dimensions	Form factor		13.3"
		Width		324,5 mm
		Deep		44,8 mm
		Height		202,5 mm
	IP Rating			IP65 (front)
	Vibration	Vibration		2G, 5 to 500 Hz
	Weight			1800 g
	Controls	Power		1 Pce
	Status indicators	System Status		1 Pce
	Color			Black
	Material			Aluminum, Steel
	Mounting option			Panel Mounting, VESA, Wall Mount
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	Additional certificates / compliance approvals			UKCA
	RoHS compliant			Yes
