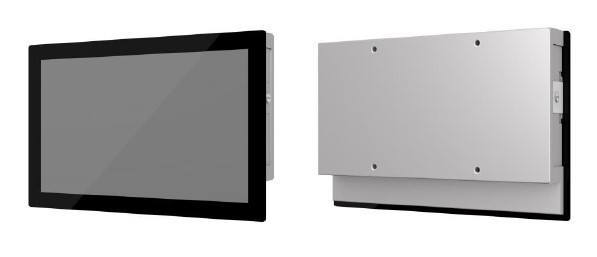

Open-Frame Display
// 7" TFT LCD
// Touchscreen (Capacitive)
// Power Supply DC 5V
Sales only to business customers.
Delivery time: upon request
Basic Module: Avalue OFM-0700
| General information | ||||
| SKU / Item Number | OFM-0700 | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| Product ID | OFM-0700-X000C-1R | |||
| Display | ||||
| Display Typ | 7" TFT LCD | |||
| Max. Resolution | 1024 x 600 | |||
| Aspect Ratio | 128 : 75 | |||
| Contrast | 900:1 | |||
| Luminance | 500 cd/m² | |||
| Response Time | 20 ms | |||
| Touch Screen | Type | Capacitive | ||
| Multitouch | 10-point | |||
| Externe I/O (Rear Panel) | ||||
| Display | DP USB-C | 1 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 5V | |||
| Connector | DC Power Jack | |||
| Current | 1,5 A | |||
| Power supply - Input | DC: 5V | |||
| Typical power consumption | 7,5 W | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° down to 70°C | |||
| Dimensions | Form factor | 7" | ||
| Width | 174,7 mm | |||
| Deep | 23 mm | |||
| Height | 111,1 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
