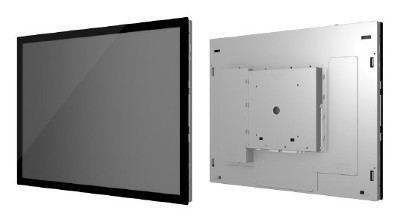

Avalue OFM-1900

Open-Frame Display

PRODUCT FEATURES

// 19" TFT LCD
// Touchscreen (Capacitive)
// Power Supply DC 12V

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Avalue OFM-1900

General information
	SKU / Item Number			OFM-1900
Product Basic Data
	Manufacturer			Avalue
	Product ID			OFM-1900-X000C-1R
Display
	Display Typ			19" TFT LCD
	Max. Resolution			1280 x 1024
	Aspect Ratio			5 : 4
	Contrast			1000:1
	Luminance			250 cd/m²
	Response Time			20 ms
	Touch Screen	Type		Capacitive
		Interface		USB
		Multitouch		10-point
Externe I/O (Rear Panel)
	Display	VGA		1 Pce
		HDMI		1 Pce
		DP USB-C		1 Pce
Power Supply
	Typ (Input)	DC	Wide Range	No
			Range	12V
			Connector	DC Power Jack
			Current	3 A
	Power supply - Input			DC: 12V
Mechanical / Environment
	Temperature	Operation		-20°C to 55°C
		Storage		-20° down to 70°C
	Dimensions	Form factor		19-inch
		Width		406,8 mm
		Deep		48,3 mm
		Height		332 mm
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class B		Yes
	CCC			Yes
	Additional certificates / compliance approvals			BSMI, CB, ICE 003, UKCA
	RoHS compliant			Yes
