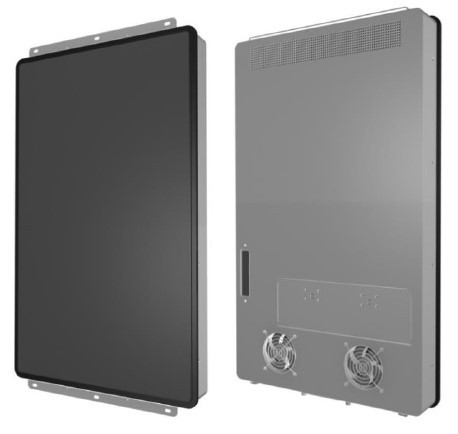

Avalue OFM-2700

Open-Frame Display

PRODUCT FEATURES

// 27" TFT LCD
// Touchscreen (Capacitive)
// IP65 (front)
// Power Supply DC 12V

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Avalue OFM-2700

General information
	SKU / Item Number			OFM-2700
Product Basic Data
	Manufacturer			Avalue
	Product ID			OFM-2700-X000C-1R
Display
	Display Typ			27" TFT LCD
	Max. Resolution			1920 x 1080
	Aspect Ratio			16 : 9
	Contrast			1000:1
	Luminance			800 cd/m²
	Response Time			14 ms
	Touch Screen	Type		Capacitive
		Interface		RS-232
		Multitouch		10-point
Externe I/O (Rear Panel)
	Display	HDMI		1 Pce
Power Supply
	Typ (Input)	DC	Wide Range	No
			Range	12V
			Connector	DC Power Jack
			Current	3 A
	Power supply - Input			DC: 12V
Mechanical / Environment
	Temperature	Operation		-20° down to 70°C
		Storage		-20° to 80°C
	Dimensions	Form factor		27-inch
		Width		422,5 mm
		Deep		76,2 mm
		Height		728,1 mm
	IP Rating			IP65 (front)
	Coating	Coating		Yes
		Material		Anti-Glare Glas
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class B		Yes
	CCC			Yes
	Additional certificates / compliance approvals			BSMI, CB, ICE 003, IK10, UKCA
	RoHS compliant			Yes
