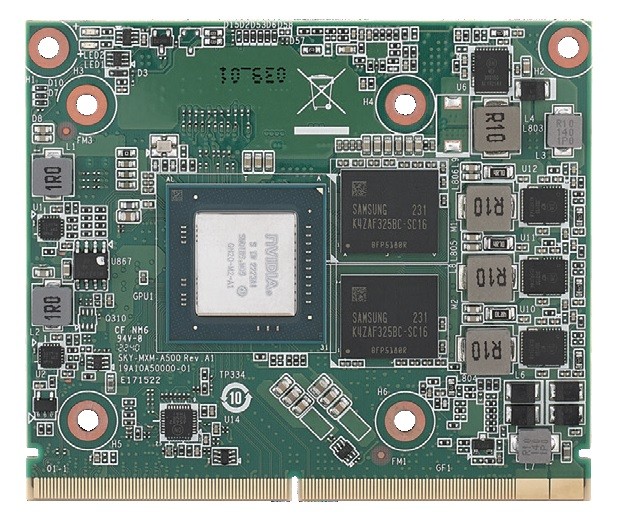

Advantech SKY-MXM-A500

MXM Modules (Mobile PCI Express Modules)

PRODUCT FEATURES

// MXM 3.1 Type-A
// Nvidia RTX A500
// 4 GB (GDDR6)
// 2048 Cuda Cores
// 16 RT Cores
// 64 Tensor Cores
// Maximum power consumption 35 W
// 0° to 55°C

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION

Basic Module: Advantech SKY-MXM-A500

General information
SKU / Item NumberSKY-MXM-A500
Product Basic Data
ManufacturerAdvantech
Product IDSKY-MXM-A500-4SHA
Graphics
ProcessorNvidia RTX A500
CoresCUDA2048 Pce
RT Cores16 Pce
Tensor64 Pce
MemoryRAM4 GB (GDDR6)
Broadband64-bit
PerformanceTFLOPS (FP32)6,54
Power Supply
Maximum power consumption35 W
Mechanical / Environment
TemperatureOperation0° to 55°C
Storage-40°C to 85°C
Relative humidityOperation5 to 85%, non-condensing
Storage5 to 95%, non-condensing
DimensionsForm factorMXM 3.1 Type-A
InterfacePCI Express 3.0 x 4
Width82 mm
Deep70 mm
OS / Software
WindowsWindows 10 (64-bit)is supported
Windows 11Supported
LinuxDistributionLinux
Supported OSWindows, Linux
Certificates / Conformities
CEYes
FCCClass BYes
RoHS compliantYes
