ATX Mainboards
// ATX Industrial Mainboards
// LGA 1700 (H6)
// [Intel Q670E | Intel R680E | Intel W680]
// 288-pin DDR5 DIMM
// [2 | 4] x G-LAN (Back side)
// 8 x USB (Back side)
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 4 x PCIe x4
// 2 x PCIe x16
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

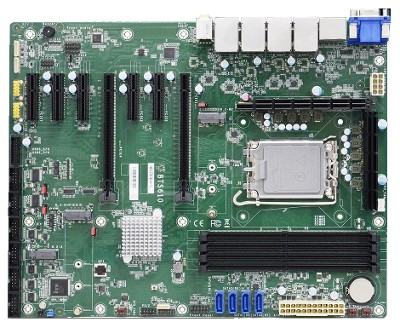

Basic Module: DFI BTS610
| General information | ||||
| SKU / Item Number | BTS610 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 125 W | |||
| Chipset | Intel Q670E, Intel R680E, Intel W680 | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 4 Pce | |||
| Maximum expansion | 192 GB | |||
| ECC (Error-Correcting Code) | is supported, not supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8786E | |
| Graphics | ||||
| Screens (Multi-display) | 4 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 24 Hz | ||
| Version | 2.0a | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCIe x4 | x4 signal | 4 Pce | ||
| PCIe x16 | x8 signal | Generation | 5 | |
| Quantity | 2 Pce | |||
| PCIe Interfaces | 2x PCIe x16 slots, 4x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 3 | Key ID | A | ||
| Interface | OOB (Out Of Box) | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | A, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps), Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Controller | Chipset | -, Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 2 Pce, - | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DP++ | 2 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| USB | USB 3.2 (Gen 2) | 8 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| USB 3.2 | Key-A Header (20-pin) | 1 Pce | ||
| Generation | Gen. 1 | |||
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 4 Pce | |
| RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 2 Pce | ||
| Digital I/O | Bits | 4-bit | 1 Pce | |
| 8-bit | 1 Pce | |||
| SMBus | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| S/PDIF | available | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 4 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 8-pin ATX (12V DC), 24-pin ATX | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -5° to 65°C | ||
| Storage | -20° down to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | ATX | ||
| Width | 305 mm | |||
| Deep | 244 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
