Mini-ITX Mainboards
// Mini-ITX Industrial Mainboards
// [Nvidia Jetson T4000 | Nvidia Jetson T5000]
// [64 GB | 128 GB]
// 1 x G-LAN (Front page)
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// 1 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

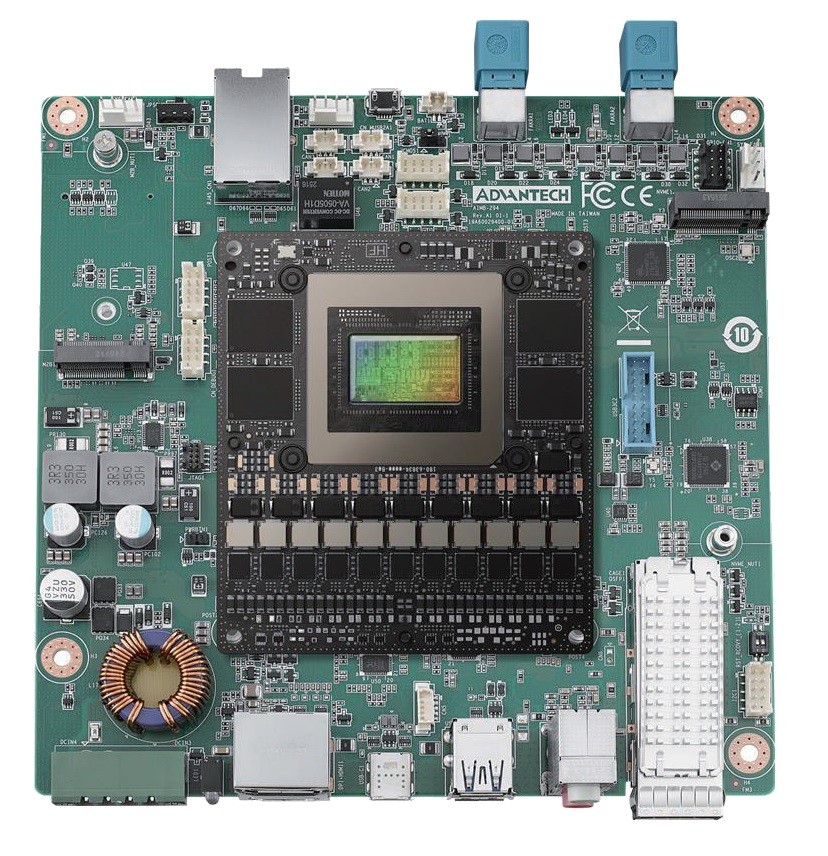

Basic Module: Advantech AIMB-294
| General information | ||||
| SKU / Item Number | AIMB-294 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Nvidia Jetson Thor Serie | ||
| Number | Nvidia Jetson T4000, Nvidia Jetson T5000 | |||
| CPU cores | 12 Pce, 14 Pce | |||
| Max Turbo Frequency | 1,57 GHz | |||
| Thermal Design Power (TDP) | 70 W, 130 W | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 64 GB, 128 GB | |||
| Graphics | ||||
| Processor | Nvidia Blackwell | |||
| Cores | RT Cores | 1536 Pce, 2560 Pce | ||
| Tensor | 64 Pce, 96 Pce | |||
| Performance | TFLOPS (FP16) | 2.070 | ||
| HDMI | Maximum resolution | 7680 x 4320 at 30 Hz | ||
| Version | 2.1 | |||
| DisplayPort | Maximum resolution | 7680 x 4320 at 30 Hz | ||
| Version | 1.4A | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | I²C, PCIe ×1 (Gen 3), USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 3052 | |||
| Slot 3 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Externe I/O (Front Panel) | ||||
| Display | Gigabit Multimedia Serial Link | Quantity | 2 Pce | |
| Ethernet | RJ-45 | 1 Pce | ||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP USB-C | 1 Pce | |||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | QSFP28 | 1 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 3.2 | Key-A Header (20-pin) | 1 Pce | |
| Serial | RS-422 / 485 | Ports (2.00 mm pitch) | 2 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 3 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 4 Pce, - | ||
| Debug port | is supported | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 24V | |||
| Connector | 4-pin terminal plug | |||
| Power supply - Input | DC: 24V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Dimensions | Form factor | Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
