Mini-ITX Mainboards
// Mini-ITX Industrial Mainboards
// [Nvidia Jetson T4000 | Nvidia Jetson T5000]
// SoC (System on a Chip)
// [64 GB | 128 GB]
// 7 x G-LAN (Back side)
// 7 x USB (Back side)
// Power Supply DC 20 to 28 V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

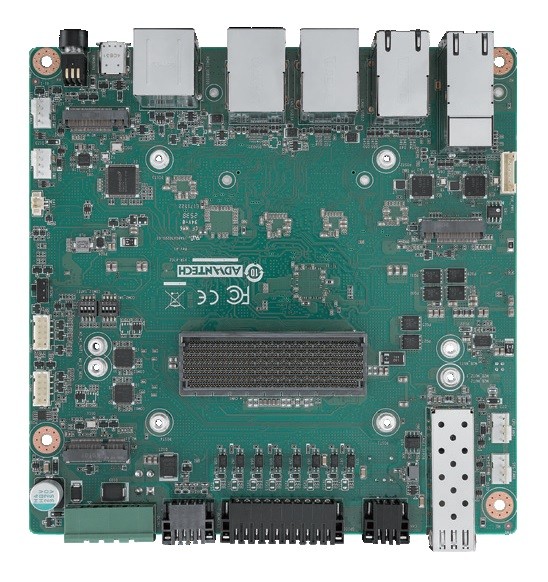

Basic Module: Advantech ASR-A702
| General information | ||||
| SKU / Item Number | ASR-A702 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Nvidia Jetson Thor Serie | ||
| Number | Nvidia Jetson T4000, Nvidia Jetson T5000 | |||
| CPU cores | 12 Pce, 14 Pce | |||
| Basic power consumption of the processor | 40 W | |||
| Maximum Turbo Power Consumption | 70 W, 130 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 64 GB, 128 GB | |||
| Graphics | ||||
| Processor | Nvidia Blackwell | |||
| Cores | RT Cores | 1536 Pce, 2560 Pce | ||
| Tensor | 64 Pce, 96 Pce | |||
| Performance | TFLOPS (FP4-Sparse) | 1.200, 2.070 | ||
| HDMI | Maximum resolution | 3840 x 2160 at 24 Hz | ||
| Version | 2.0 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2280, 3042, 3052 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 6 Pce | |||
| Network | 6x G-LAN (6 Ethernet ports) | |||
| Externe I/O (Front Panel) | ||||
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 16-bit | |||
| Connector | 20-pin terminal connector | |||
| CAN bus | Connector | 2 x 3-pin connectors | ||
| piece | 2 Pce | |||
| Protocol | CAN FD | |||
| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 6 Pce | ||
| QSFP28 | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 2) | 6 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 20 to 28 V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 20~28V | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 55°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Controls | Reset | 1 Pce | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB, EN 61000-6-4 | |||
| RoHS compliant | Yes | |||
