Mini-ITX Mainboards
// Mini-ITX Industrial Mainboards
// [Intel Core Ultra 5 325 | Intel Core Ultra 5 338H | Intel Core Ultra 7 355 | Intel Core Ultra X7 Processor 358H]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 3 x G-LAN (Back side)
// 3 x USB (Back side)
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (12-Bit)
// 1 x PCIe x4
// Power Supply ATX
// DC 12 to 28V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

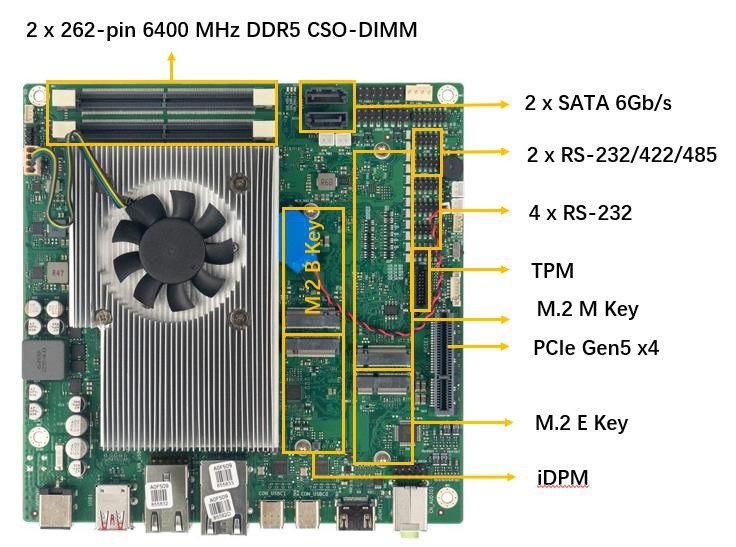

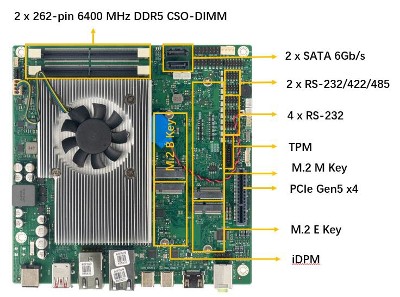

Basic Module: IEI KINO-PTL
| General information | ||||
| SKU / Item Number | KINO-PTL | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | Intel Panther Lake | ||
| Number | Intel Core Ultra 5 325, Intel Core Ultra 5 338H, Intel Core Ultra 7 355, Intel Core Ultra X7 Processor 358H | |||
| CPU cores | 8 Pce, 12 Pce, 16 Pce | |||
| Threads | 8 Pce, 12 Pce, 16 Pce | |||
| Socket | BGA 2540 | |||
| Performance core base clock frequency | 1,8 GHz, 1,9 GHz, 2,1 GHz, 2,3 GHz | |||
| Performance Core Max Turbo Frequency | 4,5 GHz, 4,7 GHz, 4,8 GHz | |||
| Efficient-core base clock frequency | 1,5 GHz, 1,6 GHz, 1,7 GHz | |||
| Efficient-core Max Turbo Frequency | 3,4 GHz, 3,5 GHz | |||
| Cache | 12 MB, 18 MB | |||
| Basic power consumption of the processor | 25 W | |||
| Maximum Turbo Power Consumption | 55 W, 65 W, 80 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | CSODIMM | |||
| DIMM data transfer rate | 6400 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 128 GB | |||
| BIOS | AMI UEFI BIOS | |||
| Graphics | ||||
| Processor | Intel Arc B370, Intel Arc B390, Intel Graphics | |||
| Screens (Multi-display) | 4 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Version | 1.4 | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Extension | ||||
| PCIe x4 | Generation | 5 | ||
| x4 signal | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 4), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Supported dimensions | 3042 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×2 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 2 Pce | |||
| Network | 3x G-LAN | |||

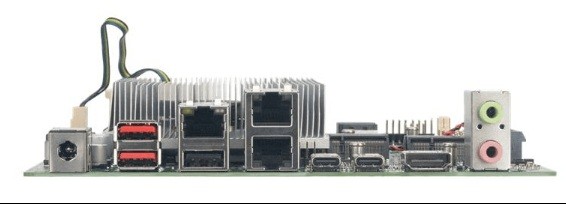

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP USB-C | 2 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 3 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| USB v4.0 Type C | Stück | 2 Pce | ||
| Data transfer modes | DisplayPort v.1.4 | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 4 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Digital I/O | Bits | 12-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (wie TPM 2.0) und TPM header | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| DC | Wide Range | Yes | ||
| Range | 12 to 28V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | ATX: 4-Pin ATX (12V DC), DC: 12–28V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Weight | 400 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
