Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrial Mainboards
// LGA 1700 (H6)
// Intel H610E
// 262-pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 3 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x16
// Power Supply ATX
// DC 12 to 24V
Sales only to business customers.
Delivery time: upon request

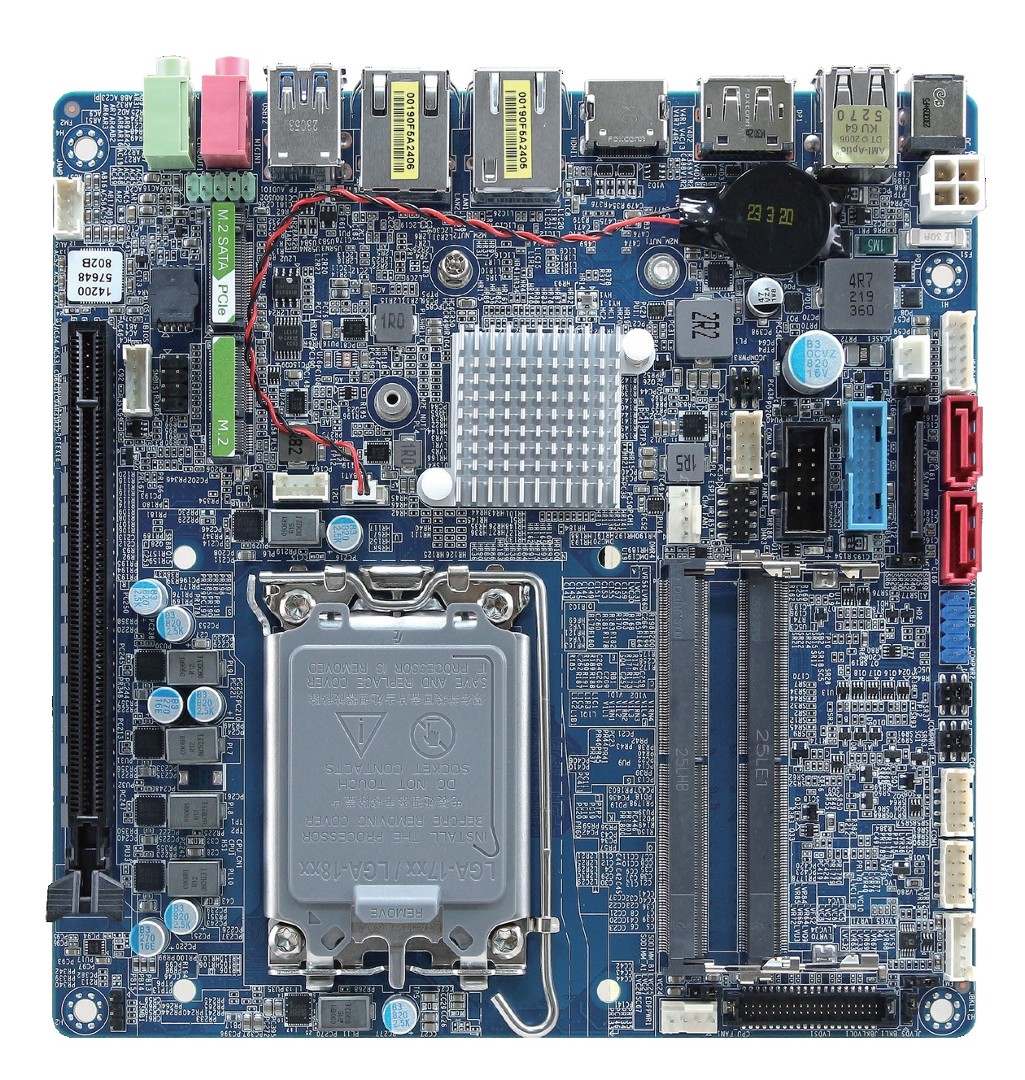

Basic Module: Avalue MX610HD
| General information | ||||
| SKU / Item Number | MX610HD | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| Product ID | 71852-IA | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel H610E | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 4800 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT6126D | |
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4b | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4A | |||
| Dual mode | Yes (DP++) | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | Chrontel CH7513A-BF | |||
| Extension | ||||
| PCIe x16 | x16 signal | Generation | 4 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4, SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface), PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC897 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219V PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I225LM PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP++ | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2, Type A) | 2 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| USB 3.2 | 2.54 mm pitch | 2 Pce | ||
| Generation | Gen. 1 | |||
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Power connection (onboard) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9670 VQ 2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| DC | Wide Range | Yes | ||
| Range | 12 to 24V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | ATX: 4-Pin ATX (12V DC), DC: 12 to 24V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | Thin Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Weight | 400 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
