Mainboards with Special Sizes
// Industrial Mainboards
// Qualcomm QCS6490
// Qualcomm QCS6490
// SoC (System on a Chip)
// 8 GB
// 1 x G-LAN
// 3 x USB (Back side)
// Digital I/O (8-Bit)
// Power Supply DC 5~12V
Sales only to business customers.
Delivery time: upon request

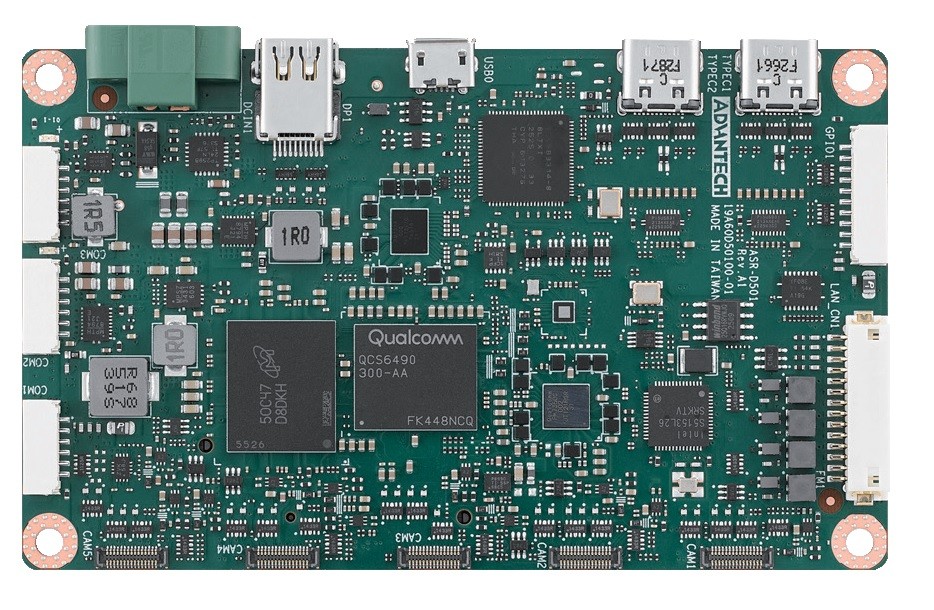

Basic Module: Advantech ASR-D501
| General information | ||||
| SKU / Item Number | ASR-D501 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A78 | ||
| Number | Qualcomm QCS6490 | |||
| CPU cores | 4 Pce | |||
| Processor 2 | Series | ARM Cortex-A55 | ||
| Number | Qualcomm QCS6490 | |||
| CPU cores | 4 Pce | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| DIMM data transfer rate | 8400 MT/s | |||
| Internal memory | 8 GB | |||
| Storage | Universal Flash Storage (UFS) | Memory | 128 GB GB | |
| Graphics | ||||
| Processor | Qualcomm Adreno 643 | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B, E | |||
| Storage | Micro SD (external) | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||

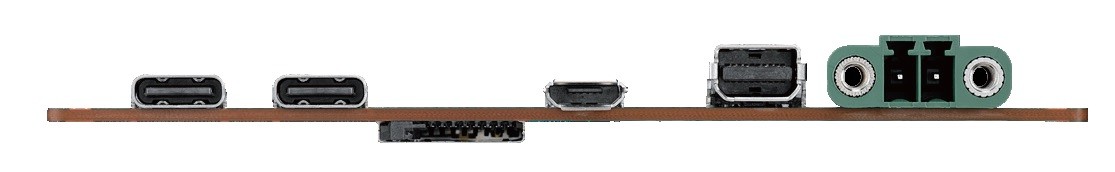

| Externe I/O (Rear Panel) | ||||
| Display | Mini DisplayPort | 1 Pce | ||
| USB | USB v3.2 (Gen 2, Type C) | 2 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Internal I/O | ||||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 2 Pce | |||
| UART | Tx/Rx | 3 Pce | ||
| Image Capture Interfaces | Camera Input 1 | Quantity | 5 Pce | |
| Lanes | 4 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 2 Pce | ||
| Protocol | CAN-FD | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 5~12V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 5~12V | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Linux | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° down to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Width | 10 mm | ||
| Deep | 60 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Weight | 50 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge) | |||
| RoHS compliant | Yes | |||
