ATX Server Mainboards
// ATX Industrial Mainboards
// LGA 4677 (P5)
// Intel C741
// 288-pin DDR5 DIMM
// 5 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (16-Bit)
// 3 x PCIe x8
// 3 x PCIe x16
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

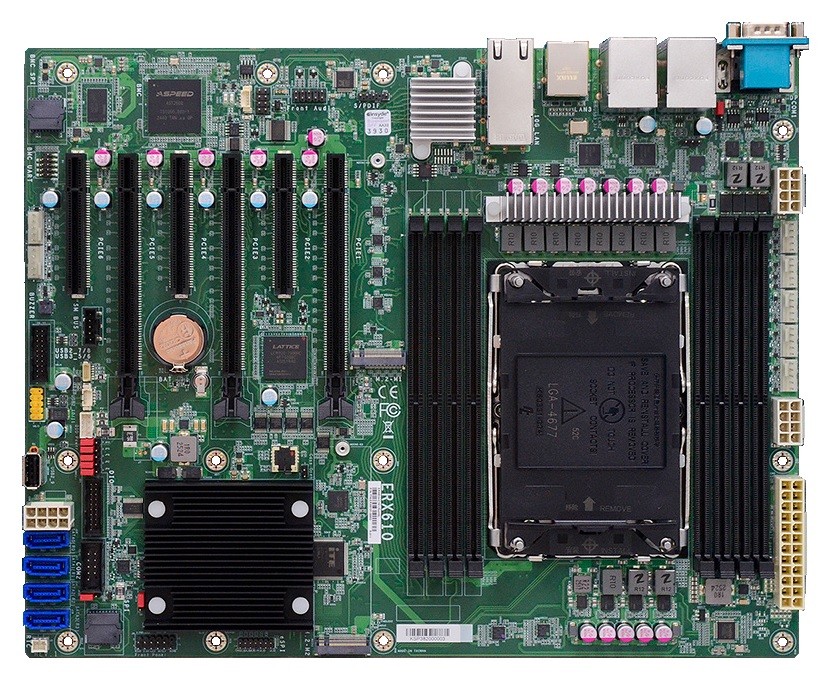

Basic Module: DFI ERX610-C741
| General information | ||||
| SKU / Item Number | ERX610-C741 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Vertical Segment | Server | ||
| Socket | LGA 4677 (P5) | |||
| Thermal Design Power (TDP) | 270 W | |||
| Chipset | Intel C741 | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Registered DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 8 Pce | |||
| Maximum expansion | 1024 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| IPMI (Intelligent Platform Management Interface) | IPMI controller | Aspeed AST2600 BMC | ||
| Version | 2.0 | |||
| Graphics | ||||
| Processor | Aspeed AST2600 BMC | |||
| Extension | ||||
| PCIe x8 | Generation | 5 | ||
| x8 signal | 3 Pce | |||
| PCIe x16 | x16 signal | Generation | 5 | |
| Quantity | 3 Pce | |||
| PCIe Interfaces | 3x PCIe x8, 3x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Controller | Chipset | Intel E610-XAT2 (2 x 10GbE) | ||
| Quantity | 2 Pce | |||
| Controller | Chipset | Realtek RTL8211F (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 5x G-LAN | |||

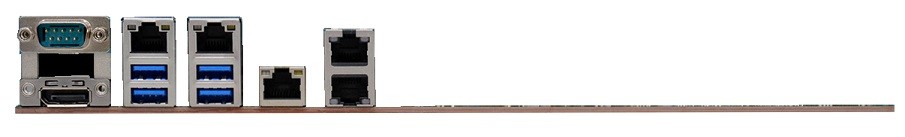

| Externe I/O (Rear Panel) | ||||
| Display | DisplayPort | 1 Pce | ||
| Ethernet | RJ-45 | 4 Pce | ||
| RJ-45 with OOB | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| USB 3.2 | Key-A Header (20-pin) | 1 Pce | ||
| Generation | Gen. 1 | |||
| Serial | RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 1 Pce | |
| Digital I/O | Bits | 16-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 4 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 2 x 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 2 x 8-pin ATX (12V DC), 24-pin ATX | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Dimensions | Form factor | ATX | ||
| Width | 305 mm | |||
| Deep | 244 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
