ATX Server Motherboards
// ATX Industrial Motherboards
// LGA 3647 (P3)
// Intel C621
// 288-pin DDR4 DIMM
// [2 | 4] x G-LAN (Back side)
// 6 x USB (Back side)
// 6 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x1
// 1 x PCIe x4
// 3 x PCIe x8
// 2 x PCIe x16
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

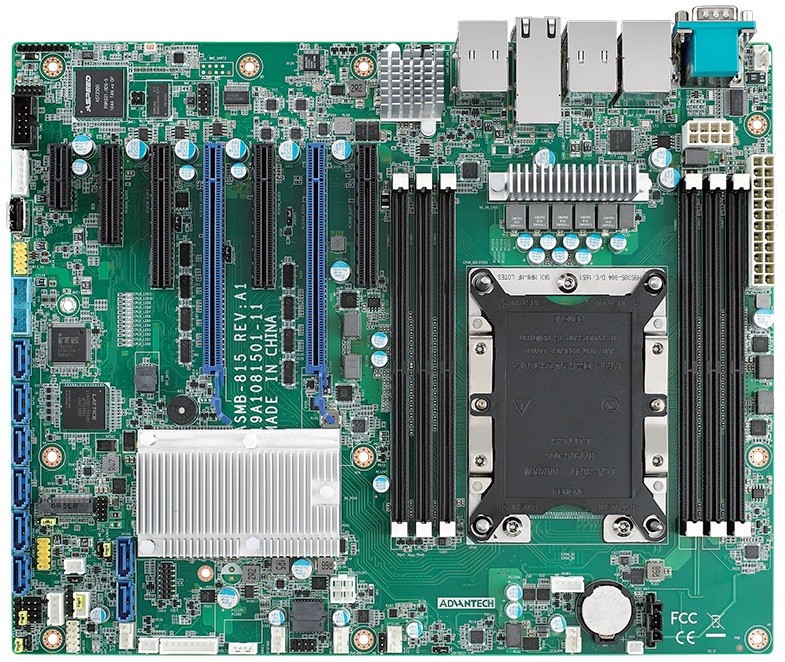

Basic Module: Advantech ASMB-815
| General information | ||||
| SKU / Item Number | ASMB-815 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Server | ||
| Socket | LGA 3647 (P3) | |||
| Thermal Design Power (TDP) | 205 W | |||
| Chipset | Intel C621 | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Registered DIMM | |||
| DIMM data transfer rate | 2933 MT/s | |||
| Slots | 6 Pce | |||
| Maximum expansion | 758 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8528E / FX | |
| IPMI (Intelligent Platform Management Interface) | IPMI controller | -, Aspeed AST2500 BMC | ||
| Graphics | ||||
| Processor | Aspeed AST2500 BMC, Aspeed AST2510 | |||
| Extension | ||||
| PCIe x1 | Generation | 3 | ||
| x1 Signal | 1 Pce | |||
| PCIe x4 | Generation | 3 | ||
| x4 signal | 1 Pce | |||
| PCIe x8 | Generation | 3 | ||
| x8 signal | 3 Pce | |||
| PCIe x16 | x16 signal | Generation | 4 | |
| Quantity | 2 Pce | |||
| PCIe Interfaces | 1x PCIe x1, 1x PCIe x4, 2x PCIe x16 slots, 3x PCIe x8 | |||
| M.2 | Slot 1 | Key ID | B + M | |
| Interface | PCIe ×4 (Gen. 3), SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B + M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Controller | Chipset | -, Intel X557-AT2 (10 Gbps) | ||
| Quantity | 1 Pce, - | |||
| Controller | Chipset | -, Realtek RTL8201EL (10/100/1000 Mbps) | ||
| Quantity | 1 Pce, - | |||
| Network | 2x G-LAN | |||

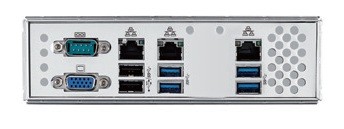

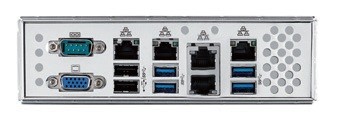

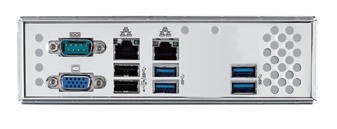

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.0 | 4 Pce | |||
| Management Ports | Amount | 1 Pce, - | ||
| Connenctor | -, RJ-45 | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| USB 3.1 | Key-A Header (20-pin) | 1 Pce | ||
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 1 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| LPC | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 8 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | TPM header | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC), 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 4-pin ATX (12V DC), 8-pin ATX (12V DC), 24-pin ATX | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| PMBus connector | Yes | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Storage | 10 to 95%, non-condensing | |||
| Dimensions | Form factor | ATX | ||
| Width | 304,8 mm | |||
| Deep | 244 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
