Micro-ATX Server Motherboards
// Micro-ATX Industrial Motherboards
// LGA 4844 (SP6)
// SoC (System on a Chip)
// 288-pin DDR5 DIMM
// [3 | 5] x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// Digital I/O (8-Bit)
// 4 x PCIe x16
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

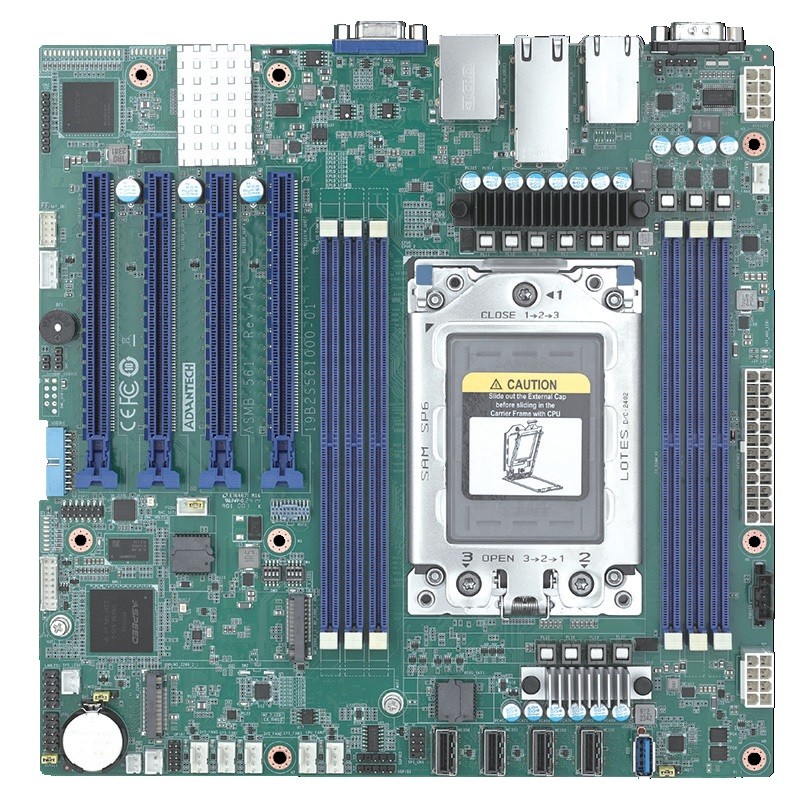

Basic Module: Advantech ASMB-561
| General information | ||||
| SKU / Item Number | ASMB-561 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | AMD EYPc 8004 Series | ||
| Socket | LGA 4844 (SP6) | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Registered DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 6 Pce | |||
| Maximum expansion | 576 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| IPMI (Intelligent Platform Management Interface) | IPMI controller | Aspeed AST2600 BMC | ||
| Version | 2.0 | |||
| Graphics | ||||
| Processor | Aspeed AST2600 BMC | |||
| Extension | ||||
| PCIe x16 | x16 signal | Generation | 5 | |
| Quantity | 4 Pce | |||
| PCIe Interfaces | 4x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Controller | Chipset | Realtek RTL8211FSI (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Controller | Chipset | -, Intel X710-AT2 (10 Gbps) | ||
| Quantity | 1 Pce, - | |||
| Network | 3x G-LAN | |||

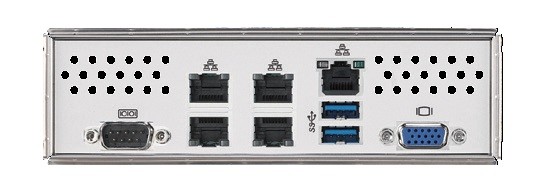

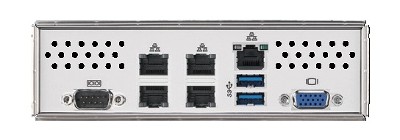

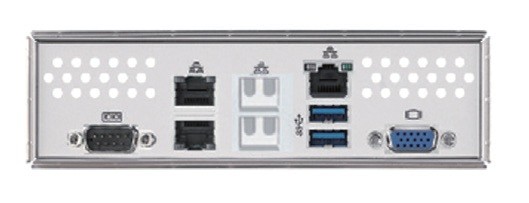

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| RJ-45 with OOB | 1 Pce | |||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 3.2 | Ports (Type-A socket) | 1 Pce | |
| Key-A Header (20-pin) | 1 Pce | |||
| Generation | Gen. 1 | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Mini Cool Edge IO (MCIO) | 4i | 4 Pce | ||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 2 x 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 2 x 8-pin ATX (12V DC), 24-pin ATX | |||
| PMBus connector | Yes | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Storage | 10 to 95%, non-condensing | |||
| Dimensions | Form factor | Micro-ATX | ||
| Width | 244 mm | |||
| Deep | 244 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
