Micro-ATX Server Motherboards
// Micro-ATX Industrial Motherboards
// LGA 1200 (H5)
// Intel W480E
// 288-pin DDR4 DIMM
// [2 | 4] x G-LAN (Back side)
// 4 x USB (Back side)
// 8 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCIe x4
// 1 x PCIe x16
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

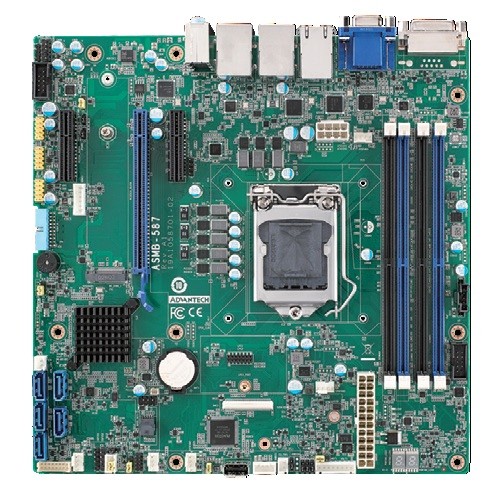

Basic Module: Advantech ASMB-587
| General information | ||||
| SKU / Item Number | ASMB-587 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Intel Comet Lake | ||
| Socket | LGA 1200 (H5) | |||
| Thermal Design Power (TDP) | 125 W | |||
| Chipset | Intel W480E | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered DIMM | |||
| DIMM data transfer rate | 2666 MT/s | |||
| Slots | 4 Pce | |||
| Maximum expansion | 128 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT6776D | |
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| DVI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| Extension | ||||
| PCIe x4 | Generation | 3 | ||
| x4 signal | 2 Pce | |||
| PCIe x16 | x16 signal | Generation | 3 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x16, 2x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 3), SATA III | |||
| Supported dimensions | 2280, 22110 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC892 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce, 3 Pce | |||
| Network | 1x G-LAN | |||

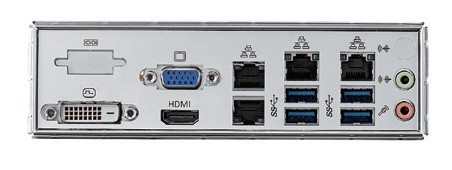

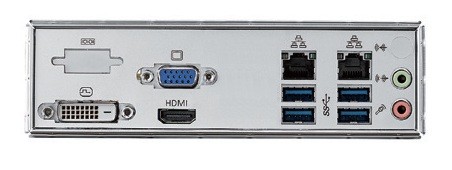

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DVI | DVI-D signal | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 6 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| USB 3.2 | Key-A Header (20-pin) | 1 Pce | ||
| Generation | Gen. 1 | |||
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 2 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| LPC | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 5 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | TPM header | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 8-pin ATX (12V DC), 24-pin ATX | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| PMBus connector | Yes | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows Server 2019 | is supported | |||
| Supported OS | Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | Micro-ATX | ||
| Width | 244 mm | |||
| Deep | 244 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
