PICMG 1.0 (PCI/ISA Bus)
The product is EOL (End Of Life)!
// PICMG 1.0 Industrial Motherboards
// LGA 1150 (H3)
// Intel H81
// 240-pin DDR3 / DDR3L DIMM
// 2 x G-LAN (Front page)
// 2 x USB (Front page)
// 6 x USB (internal)
// 5 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

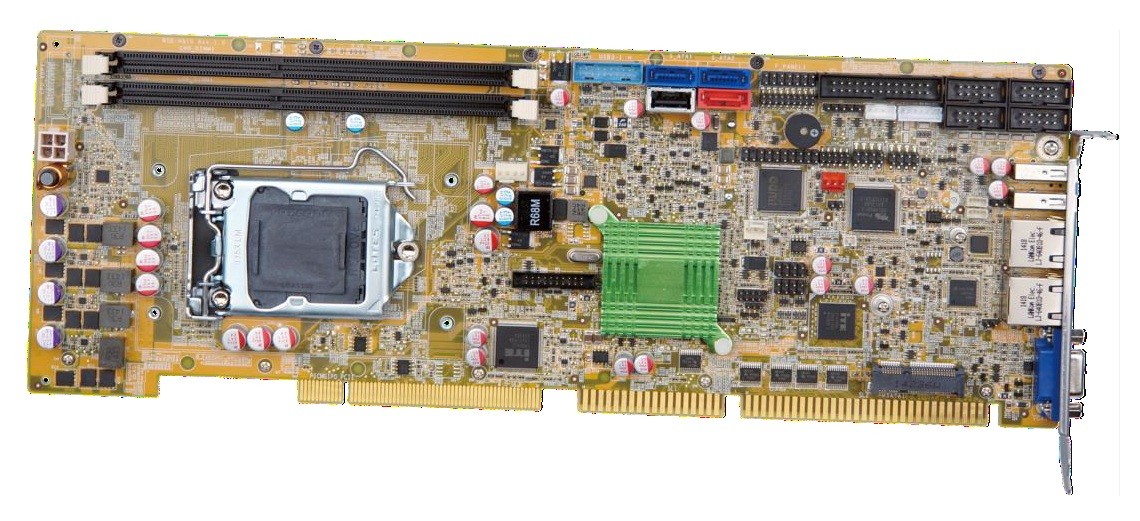

Basic Module: IEI WSB-H810
| General information | ||||
| SKU / Item Number | WSB-H810 | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| Product ID | WSB-H810-R10 | |||
| System | ||||
| Processor | Series | Intel Haswell | ||
| Socket | LGA 1150 (H3) | |||
| Chipset | Intel H81 | |||
| Memory | Structure | 240-pin DDR3 / DDR3L DIMM | ||
| Memory Type | DDR3 | |||
| DIMM Type | Unbuffered DIMM | |||
| Frequency | 1333 / 1600 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 16 GB | |||
| BIOS | AMI UEFI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81866AD-I | |
| Graphics | ||||
| Screens (Multi-display) | 2 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 2 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Supports High Definition Audio interface | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I217LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Front Panel) | ||||
| Display | VGA | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| USB 3.2 | Key-A Header (20-pin) | 1 Pce | ||
| Generation | Gen. 1 | |||
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 4 Pce | |
| RS-422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Parallel | Ports (2.54 mm pitch) | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 1 Pce | ||
| SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | |||
| Debug port | is supported | |||
| Infrared | is supported | |||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | TPM header | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| Power supply - Input | ATX: 4-Pin ATX (12V DC) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | PICMG 1.0 | ||
| Width | 338 mm | |||
| Deep | 122 mm | |||
| Weight | 260 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
