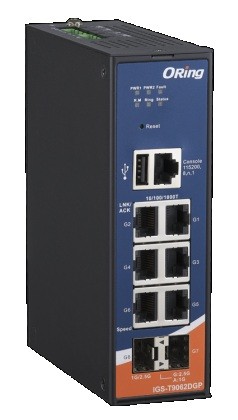

Basic Module: ORing IGS-T9062DGP
| General information | ||||
| SKU / Item Number | IGS-T9062DGP | |||
| Product Basic Data | ||||
| Manufacturer | ORing | |||
| System | ||||
| Switch type | Managed | |||
| Network | ||||
| Switch layer | Layer 2 | |||
| Switch Properties | Switching latency | 7 µs | ||
| Switching bandwidth | 22 Gbps | |||
| Max. supported VLANs | 4096 Pce | |||
| IGMP Multicast Groups per VLAN | 128 | |||
| Port Rate Limiting | Benutzerdefiniert | |||
| Safety features | IEEE 802.1X with MAC-based identity validation, IEEE 802.1X-based port authentication, Per-port control with MAC-based filtering, Secure remote access via HTTPS and SSH, Encrypted SNMPv3 access with auth/privacy options, Static MAC/IP binding for device-level security, VLAN tagging for traffic isolation and segmentation | |||
| Software Features | Application-based QoS control, DoS/DDoS detection and protection, IGMP Snooping v2/v3 for multicast control, MRP for redundant ring topology, MSTP, compatible with STP/RSTP, O-Ring with <30 ms recovery time, Port config, status, security and statistics, QoS according to IEEE 802.1p, SMTP client for email notifications, TOS/DiffServ for traffic prioritization, VLAN tagging according to 802.1Q | |||
| Network Redundancy | MRP, ring protocol per IEC 62439-2, MSTP, compatible with RSTP/STP standards, O-Chain, daisy-chain topology with failover, O-Ring, redundant ring with <30 ms recovery | |||
| Externe I/O (Front Panel) | ||||
| Ethernet | RJ-45 | 6 Pce | ||
| SFP (Small Form-factor Pluggable) | 2 Pce | |||
| Console | RJ45 Connector | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 24 to 48 volts | |
| Connector | 4-pin terminal plug | |||
| Redundant | Yes, dual DC | |||
| Power supply - Input | DC: 24 to 48V | |||
| Typical power consumption | 15 W | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 75°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Width | 45 mm | ||
| Deep | 109 mm | |||
| Height | 147 mm | |||
| IP Rating | IP40 (completely) | |||
| Vibration | Reference Standard | IEC 68-2-6 | ||
| Shock | Reference Standard | IEC 68-2-27 | ||
| Drop | Reference Standard | IEC-60068-2-32 | ||
| Weight | 733 g | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 400.000 h | ||
| Status indicators | Power | 1 Pce | ||
| Material | Aluminum | |||
| Mounting option | DIN Rail, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | CISPR 32, EN 55032, EN 55035, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-6-2, EN 61000-6-4, EN 62368-1 | |||
| RoHS compliant | Yes | |||
| IEEE Ethernet and Networking Standards | IEEE 802.1AB for Link Layer Discovery Protocol (LLDP), IEEE 802.1D for Spanning Tree Protocol (STP), IEEE 802.1p for Class of Service (CoS), IEEE 802.1Q for VLAN tagging, IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w for Rapid Spanning Tree Protocol (RSTP), IEEE 802.1X für die Netzwerkzugangsauthentifizierung, IEEE 802.3 for 10BASE-T Ethernet, IEEE 802.3ab for 1000BASE-T Gigabit Ethernet, IEEE 802.3ad for Link Aggregation (LACP), IEEE 802.3ae for 10GBASE-SR/LR Ethernet (10 Gigabit Ethernet over fiber), IEEE 802.3bz for 2.5G/5GBASE-T Ethernet, IEEE 802.3u for 100BASE-TX Fast Ethernet, IEEE 802.3x for flow control, IEEE 802.3z for 1000BASE-X (Gigabit Ethernet over fiber or shielded copper) | |||
