Industrial IoT Gateways
// Advantech
// ECU-1152
// -
Sales only to business customers.
Delivery time: upon request

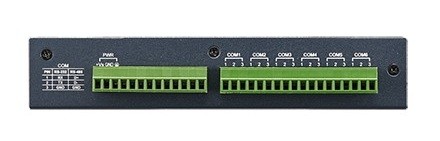

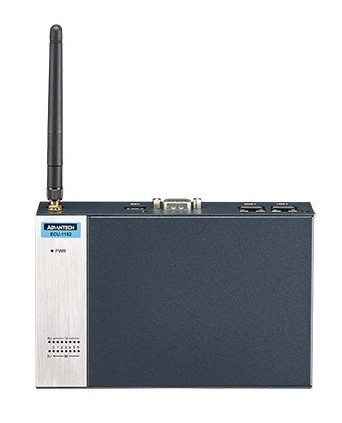

Basic Module: Advantech ECU-1152
| General information | ||||
| SKU / Item Number | ECU-1152 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A8 | ||
| Base frequency | 0,8 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR3 | ||
| Internal memory | 512 MB | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Storage | Micro SD | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| RS-485 | 3-pin terminal connector | 6 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 10-30V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 10~30V | |||
| Typical power consumption | 3,3 W | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Width | 190 mm | ||
| Deep | 110 mm | |||
| Height | 36,4 mm | |||
| Material | Steel | |||
| Mounting option | DIN Rail, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
