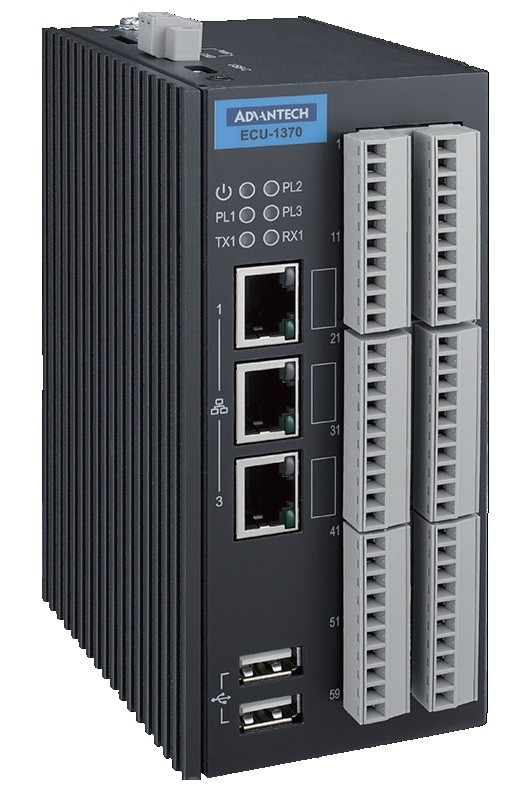

Advantech ECU-1370

Industrial IoT Gateways

PRODUCT FEATURES

// Advantech
// ECU-1370
// ECU-1370-531A

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Advantech ECU-1370

General information
	SKU / Item Number			ECU-1370
Product Basic Data
	Manufacturer			Advantech
	Product ID			ECU-1370-531A
System
	Processor	Series		ARM Cortex-A53
		Number		NXP i.MX 8M Quad
		CPU cores		4 Pce
		Base frequency		1,3 GHz
	Chipset			SoC (System on a Chip)
	Memory	Memory Type		DDR4
		Internal memory		4 GB
	Storage	Embedded MultiMedia Card (eMMC)		32 GB
	Power supply - Input			Embedded MultiMedia Card (eMMC) 32 GB
Extension
	Storage			Micro SD (external)
Externe I/O (Front Panel)
	Ethernet	RJ-45		3 Pce
	Digital I/O	Quantity		2 Pce
		Bits		12-bit
	USB	USB 2.0		2 Pce
	Console			USB Type C Connector
	CAN bus	Connector		3-pin terminal connector
		piece		1 Pce
		Protocol		CAN 2.0A, CAN 2.0B
Cooling
	Implementation			Passive

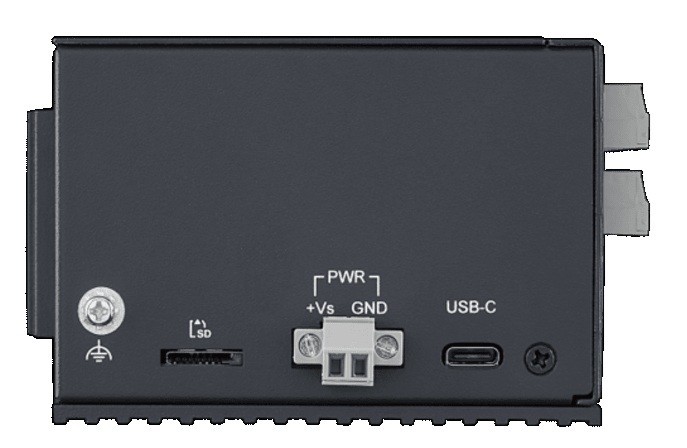

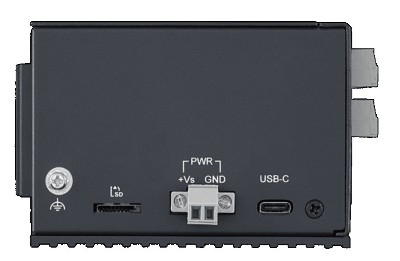

Power Supply
	Typ (Input)	DC	Wide Range	No
			Range	10-30V
			Connector	2-pin terminal connector
	Power supply - Input			DC: 10~30V
	Typical power consumption			6,5 W
	Maximum power consumption			6,8 W
Mechanical / Environment
	Temperature	Operation		-40°C to 80°C
		Storage		-40°C to 85°C
	Relative humidity	Operation		5 to 95%, non-condensing
	Dimensions	Width		93 mm
		Deep		65,3 mm
		Height		140 mm
	IP Rating			IP30
	Status indicators	Power		1 Pce
		Serial (RS-232)		2 Pce
		System Status		3 Pce
	Color			Black
	Mounting option			DIN Rail
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class A		Yes
	Additional certificates / compliance approvals			CB, UKCA
	RoHS compliant			Yes
