Industrial IoT Gateways
// Advantech
// ECU-150
// -
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

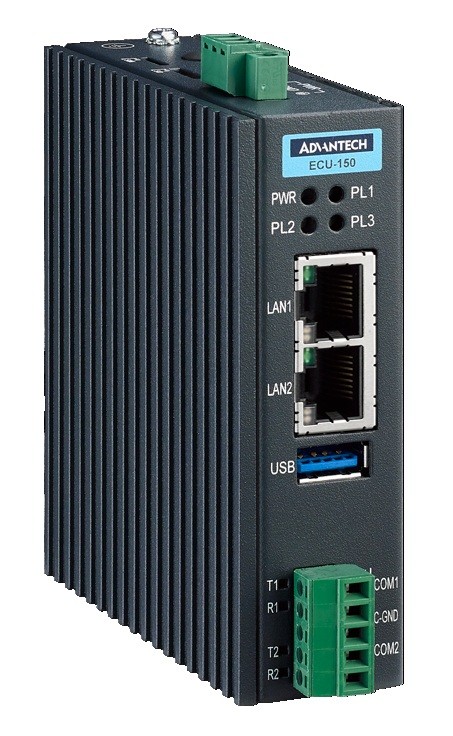

Basic Module: Advantech ECU-150
| General information | ||||
| SKU / Item Number | ECU-150 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | NXP i.MX 8M Quad | |||
| CPU cores | 4 Pce | |||
| Base frequency | 1,3 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 2 GB, 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB, 32 GB | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD (external) | |||
| Network | ||||
| Cellular Network | Data Protocol | MQTT | ||
| VPN | VPN support | OpenVPN | ||
| Software Features | Modbus TCP for industrial integration | |||
| Externe I/O (Front Panel) | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-485 | 2-pin terminal connector | 2 Pce | |
| USB | USB 3.0 | 1 Pce | ||
| Console | -, Micro USB | |||
| SIM card slot | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 10-30V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 10~30V | |||
| Typical power consumption | 8 W | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Width | 30 mm | ||
| Deep | 100 mm | |||
| Height | 93 mm | |||
| Status indicators | Power | 1 Pce | ||
| Serial (RS-232) | 4 Pce | |||
| System Status | 3 Pce | |||
| Material | Aluminum | |||
| Mounting option | DIN Rail, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | IEC 62368-1 | |||
| RoHS compliant | Yes | |||
