Protocol Converters
// Advantech
// EKI-1221
// -
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

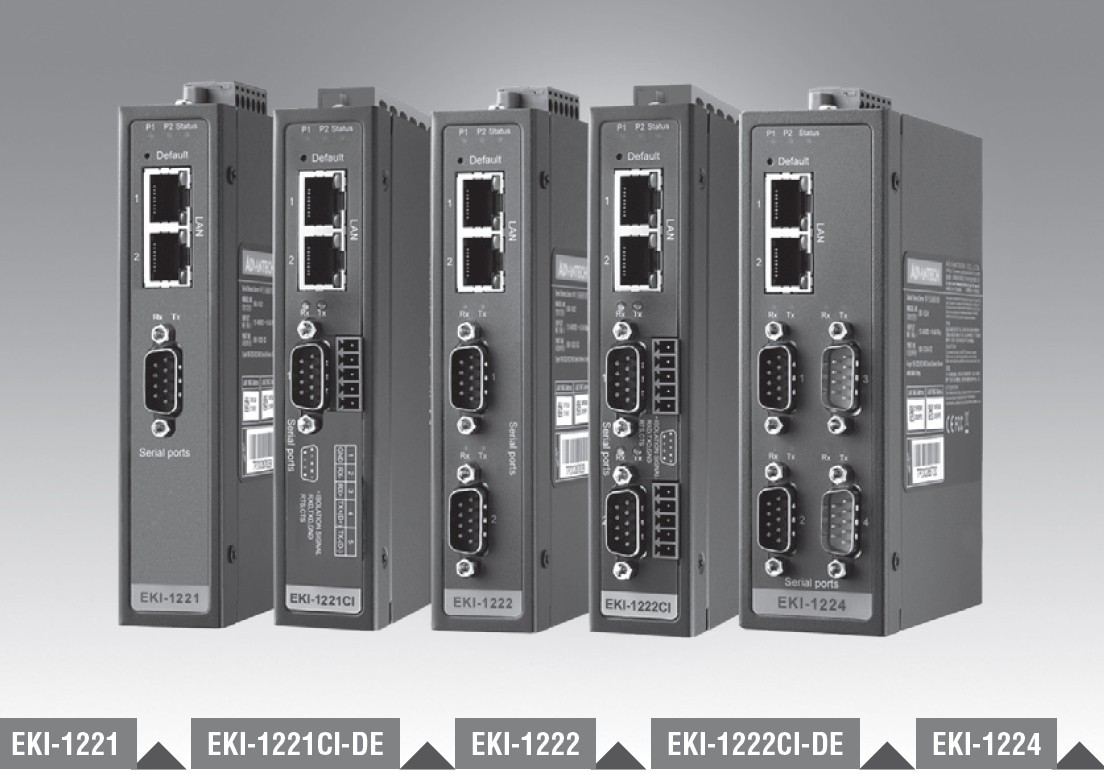

Basic Module: Advantech EKI-1221
| General information | ||||
| SKU / Item Number | EKI-1221 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Network | ||||
| Software Features | DHCP server, client and relay, Modbus TCP for industrial integration, SMTP client for email notifications | |||
| Externe I/O (Front Panel) | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| RS-422 / 485 | 5 Pin Terminal Stecker | 1 Pce, - | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 48V | |||
| Connector | 6-pin terminal connector | |||
| Redundant | Yes, dual DC | |||
| Power supply - Input | DC: 12 to 48V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C, -40°C to 80°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Thermal Design Power (TDP) | 3,2 W | |||
| Dimensions | Width | 30 mm | ||
| Deep | 140 mm | |||
| Height | 95 mm | |||
| IP Rating | IP30 | |||
| Weight | 472 g | |||
| Status indicators | Power | 1 Pce | ||
| Serial (RS-232) | 1 Pce | |||
| Gigabit Ethernet | 1 Pce | |||
| System Status | 1 Pce | |||
| Mounting option | DIN Rail, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | ATEx / IECEx Zone 2 Ex ec IIC T4 Gc, Class I, Division 2, Groups ABCD, T4 | |||
| RoHS compliant | Yes | |||
| IEEE Ethernet and Networking Standards | IEEE 802.3 for 10BASE-T Ethernet, IEEE 802.3u for 100BASE-TX Fast Ethernet | |||
