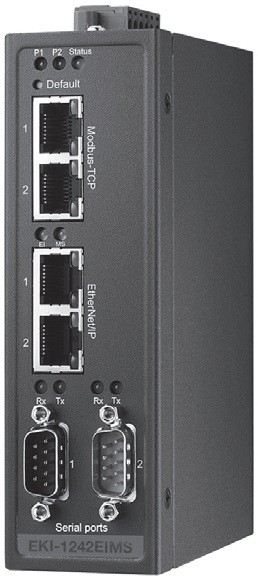

Advantech EKI-1242IEIMS

Protocol Converters

PRODUCT FEATURES

// Advantech
// EKI-1242IEIMS
// EKI-1242IEIMS-A

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Advantech EKI-1242IEIMS

General information
	SKU / Item Number			EKI-1242IEIMS
Product Basic Data
	Manufacturer			Advantech
	Product ID			EKI-1242IEIMS-A
Network
	Software Features			Modbus TCP for industrial integration, OPC UA for standardized data integration
Externe I/O (Front Panel)
	Ethernet	RJ-45		4 Pce
	Serial	RS-232 / 422 / 485	DB-9	2 Pce
Power Supply
	Typ (Input)	DC	Wide Range	Yes
			Range	12 to 48V
			Connector	6-pin terminal connector
			Redundant	Yes, dual DC
	Power supply - Input			DC: 12 to 48V
	Typical power consumption			5,2 W
Mechanical / Environment
	Temperature	Operation		-40°C to 75°C
		Storage		-40°C to 85°C
	Relative humidity	Operation		10 to 95%, non-condensing
	Dimensions	Width		42 mm
		Deep		140 mm
		Height		95 mm
	Weight			497 g
	Controls	Reset		1 Pce
	Status indicators	Power		2 Pce
		Serial (RS-232)		4 Pce
		Gigabit Ethernet		2 Pce
		System Status		1 Pce
	Mounting option			DIN Rail, Wall Mount
Certificates / Conformities
	CE			Yes
	FCC	Class A		Yes
	RoHS compliant			Yes
	IEEE Ethernet and Networking Standards			IEEE 802.3 for 10BASE-T Ethernet, IEEE 802.3u for 100BASE-TX Fast Ethernet
