Railway Ethernet Switches (EN 50155)
// Advantech
// EKI-9520G
// -
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

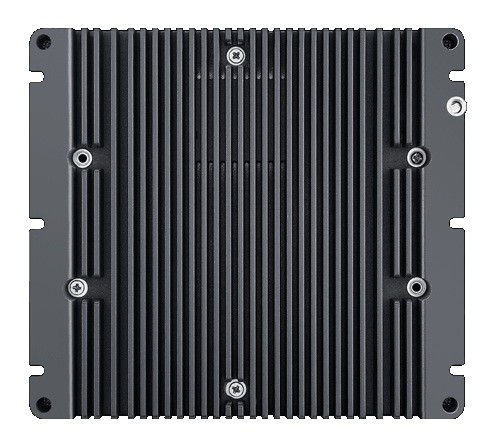

Basic Module: Advantech EKI-9520G
| General information | ||||
| SKU / Item Number | EKI-9520G | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Network | ||||
| Safety features | VLAN tagging for traffic isolation and segmentation | |||
| Software Features | IGMP Snooping v2/v3 for multicast control, VLAN tagging according to 802.1Q | |||

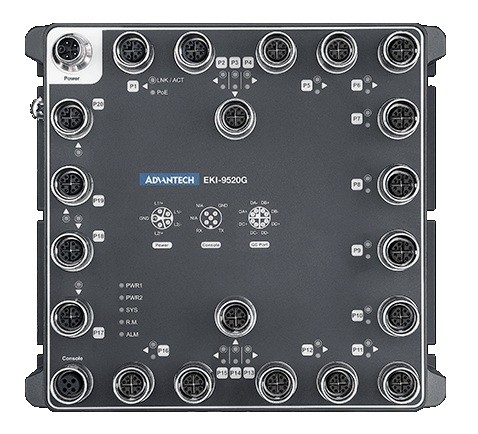

| Externe I/O (Front Panel) | ||||
| Ethernet | M12 connectors | 4 Pce, 20 Pce | ||
| M12 connectors with POE | 16 Pce, - | |||
| Console | M12 connector | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 24 to 110V | |
| Power supply - Input | DC: 24 to 110 volts | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Width | 178 mm | ||
| Deep | 160 mm | |||
| Height | 67,2 mm | |||
| IP Rating | IP67 | |||
| Vibration | Reference Standard | IEC 61373 | ||
| Shock | Reference Standard | IEC 61373 | ||
| Drop | Reference Standard | IEC-60068-2-31 | ||
| Status indicators | Power | 2 Pce | ||
| Gigabit Ethernet | 20 Pce | |||
| System Status | 3 Pce | |||
| Color | Black | |||
| Material | Aluminum, Zinc | |||
| Mounting option | Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 45545, EN 50121-3-2, EN 50155, EN 55011, EN 55032, EN 55035, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-6-2, EN 61000-6-4, EN 62368-1, IEC 62443-4-2 (Cybersecurity) | |||
| RoHS compliant | Yes | |||
| IEEE Ethernet and Networking Standards | IEEE 802.1D for Spanning Tree Protocol (STP), IEEE 802.1p for Class of Service (CoS), IEEE 802.1Q for VLAN tagging, IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w for Rapid Spanning Tree Protocol (RSTP), IEEE 802.1X für die Netzwerkzugangsauthentifizierung, IEEE 802.3ad for Link Aggregation (LACP) | |||
