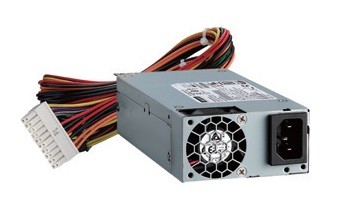

Advantech PS8-250FATX-BB

FLEX Industrial Power Supplies

PRODUCT FEATURES

// FLEX Industrial Power Supplies
// 250 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Advantech PS8-250FATX-BB

General information
	SKU / Item Number			PS8-250FATX-BB
Product Basic Data
	Manufacturer			Advantech
Power Supply
	Typ (Input)	AC	Range	90~264V
			Connector	C14
	Power supply - Input			AC: 90~264V
	Output wattage			250 W
	Output Voltage	+5V	Output Current Min.	0 A
			Output Current Max	15 A
			Regulation Line (±)	5 %
			Output Ripple & Noise Max	50 mV
		-12V	Output Current Min.	0 A
			Output Current Max	0,3 A
			Regulation Line (±)	10 %
			Output Ripple & Noise Max	120 mV
		+3.3V	Output Current Min.	0 A
			Output Current Max	13 A
			Regulation Line (±)	5 %
			Output Ripple & Noise Max	50 mV
		+5V Standby	Output Current Min.	0 A
			Output Current Max	2,5 A
			Regulation Line (±)	5 %
			Output Ripple & Noise Max	50 mV
		+12V1	Output Current Max	17 A
		+12V2	Output Current Max	17 A
Mechanical / Environment
	Temperature	Operation		0° to 50°C
		Storage		-20° to 80°C
	Relative humidity	Operation		0 to 85%, non-condensing
		Storage		5 to 95%, non-condensing
	Dimensions	Form factor		Flex
		Width		81,5 mm
		Deep		150 mm
		Height		40,5 mm
	MTBF (Mean Time Between Failures)	MTBF at 25°C		100.000 h
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class B		Yes
	CCC			Yes
	Additional certificates / compliance approvals			80 PLUS Bronze, BSMI, CB, IEC 60950-1, KC
	RoHS compliant			Yes
