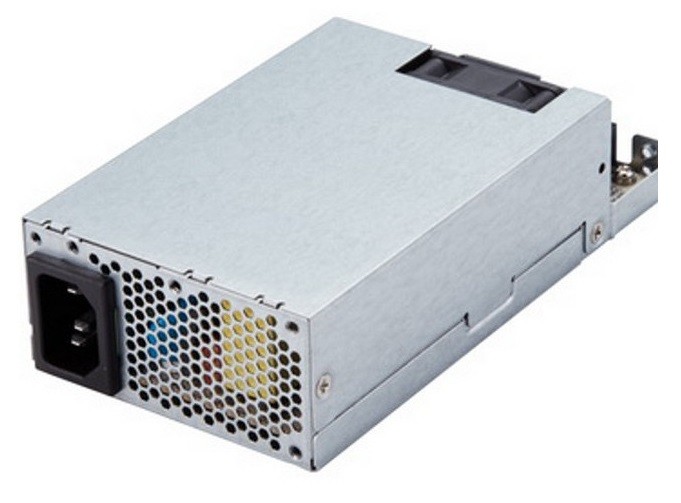

Fortron Source FSP180-50FGNBI(M)

FLEX Industrial Power Supplies

PRODUCT FEATURES

// FLEX Industrial Power Supplies
// 180 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source FSP180-50FGNBI(M)

General information
	SKU / Item Number			FSP180-50FGNBI(M)
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	90~264V
			Input frequency	47 to 63 Hz
			Connector	C14
	Power supply - Input			AC: 90~264V
	Output wattage			180 W
	Output Voltage	+5V	Output Current Max	12 A
		+12V	Output Current Max	12 A
		-12V	Output Current Max	0,3 A
		+3.3V	Output Current Max	8 A
		+5V Standby	Output Current Max	2 A
	Efficiency	At 100% load / 25°C		72 %
Mechanical / Environment
	Temperature	Operation		0° to 50°C
		Storage		-20° to 80°C
	Relative humidity	Operation		5 to 85%, non-condensing
		Storage		5 to 95%, non-condensing
	Dimensions	Form factor		FlexATX
		Width		150 mm
		Deep		81,5 mm
		Height		40,5 mm
	MTBF (Mean Time Between Failures)	MTBF at 25°C		100.000 h
Certificates / Conformities
	CE			Yes
	UL			Yes
	FCC	Class B		Yes
	CCC			Yes
	Additional certificates / compliance approvals			CB
	RoHS compliant			Yes

	Products	Manufacturer	Article Number
	FLEX Industrial Power Supplies, 220 W		FSP220-50FEB
	FLEX Industrial Power Supplies, 220 W		FSP220-50FGBBI(M)
