Open-Frame Power Supplies
// Open-Frame Power Supplies
// 100 W
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

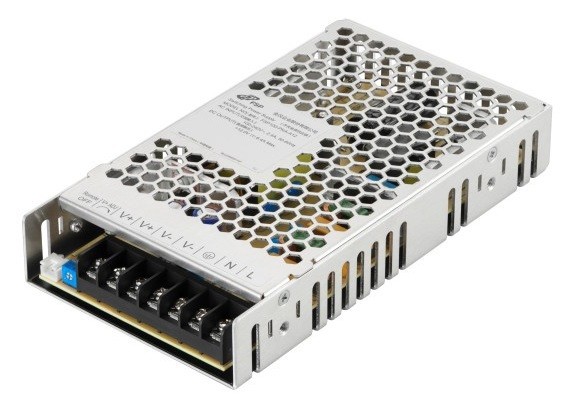

Basic Module: Fortron Source FSP100-PNA
| General information | ||||
| SKU / Item Number | FSP100-PNA | |||
| Product Basic Data | ||||
| Manufacturer | Fortron Source | |||
| Power Supply | ||||
| Typ (Input) | AC | Range | 100~240V | |
| Input frequency | 47 to 63 Hz | |||
| Power supply - Input | AC: 100-240V | |||
| Output wattage | 100 W | |||
| Output Voltage | +12V | Output Current Max | 8,4 A, - | |
| +24V | Output Current Max | 4,2 A, - | ||
| +48V | Output Current Max | 2,1 A, - | ||
| Efficiency | At 100% load / 25°C | 88 %, 89 %, 90 % | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° down to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | Open Frame (Housing) | ||
| Width | 179 mm | |||
| Deep | 99 mm | |||
| Height | 30 mm | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 330.000 h | ||
| Calculation model | Telcordia SR-332 | |||
| Controls | Power (terminal connection) | 1 Pce | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 62368-1 | |||
| RoHS compliant | Yes | |||
