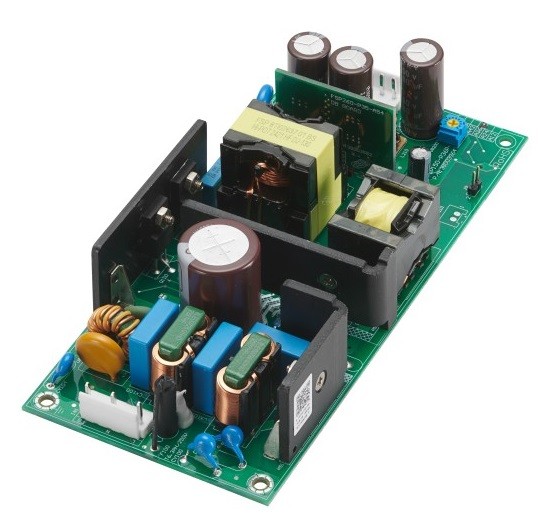

Fortron Source FSP150-P36P

FSP150-P36P-A12, FSP150-P36P-A24, FSP150-P36P-A36, FSP150-P36P-A48

Open-Frame Power Supplies

PRODUCT FEATURES

// Open-Frame Power Supplies
// 150 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source FSP150-P36P

General information
	SKU / Item Number			FSP150-P36P
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	85~264V
			Input frequency	47 to 63 Hz
	Power supply - Input			AC: 85~264V
	Output wattage			150 W
	Efficiency	At 100% load / 25°C		91 %
	Typ (Output)	DC	Range	12V, 24V, 36V, 48V
			Current	3,13 A, 4,16 A, 6,25 A, 12,5 A
Mechanical / Environment
	Temperature	Operation		-20° down to 70°C
		Storage		-40°C to 85°C
	Relative humidity	Operation		10 to 95%, non-condensing
	Dimensions	Form factor		Open frame (PCB)
		Width		75 mm
		Deep		160 mm
		Height		32 mm
	Weight			285 g
	MTBF (Mean Time Between Failures)	MTBF at 25°C		1.000.000 h
		Calculation model		Telcordia SR-332
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	Additional certificates / compliance approvals			EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 62368-1
	RoHS compliant			Yes
