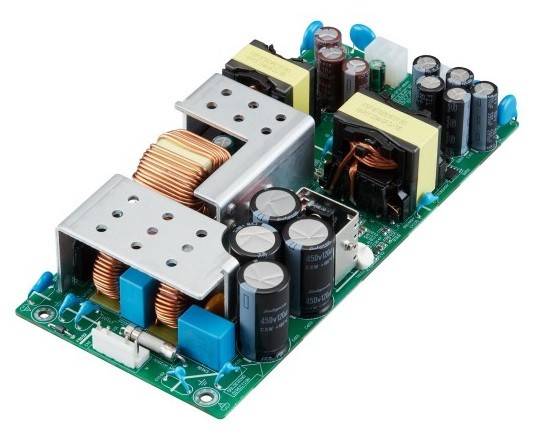

Fortron Source FSP950-2F37-A54H

Open-Frame Power Supplies

PRODUCT FEATURES

// Open-Frame Power Supplies
// 950 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source FSP950-2F37-A54H

General information
	SKU / Item Number			FSP950-2F37-A54H
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	90~264V
			Input frequency	47 to 63 Hz
	Power supply - Input			AC: 90~264V
	Output wattage			950 W
	Output Voltage	+12V	Output Current Min.	0,5 A
			Output Current Max	12,5 A
		+54V	Output Current Min.	0,02 A
			Output Current Max	14,7 A
	Efficiency	At 100% load / 25°C		92 %
Mechanical / Environment
	Temperature	Operation		-20° down to 70°C
		Storage		-40°C to 85°C
	Relative humidity	Operation		5 to 95%, non-condensing
	Dimensions	Width		90 mm
		Deep		190 mm
		Height		35,5 mm
	Weight			538 g
	MTBF (Mean Time Between Failures)	MTBF at 25°C		500.000 h
		Calculation model		TELCORDIA SR-332
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	Additional certificates / compliance approvals			EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 62368-1
	RoHS compliant			Yes
